Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer) (873) REAR STABILIZERS

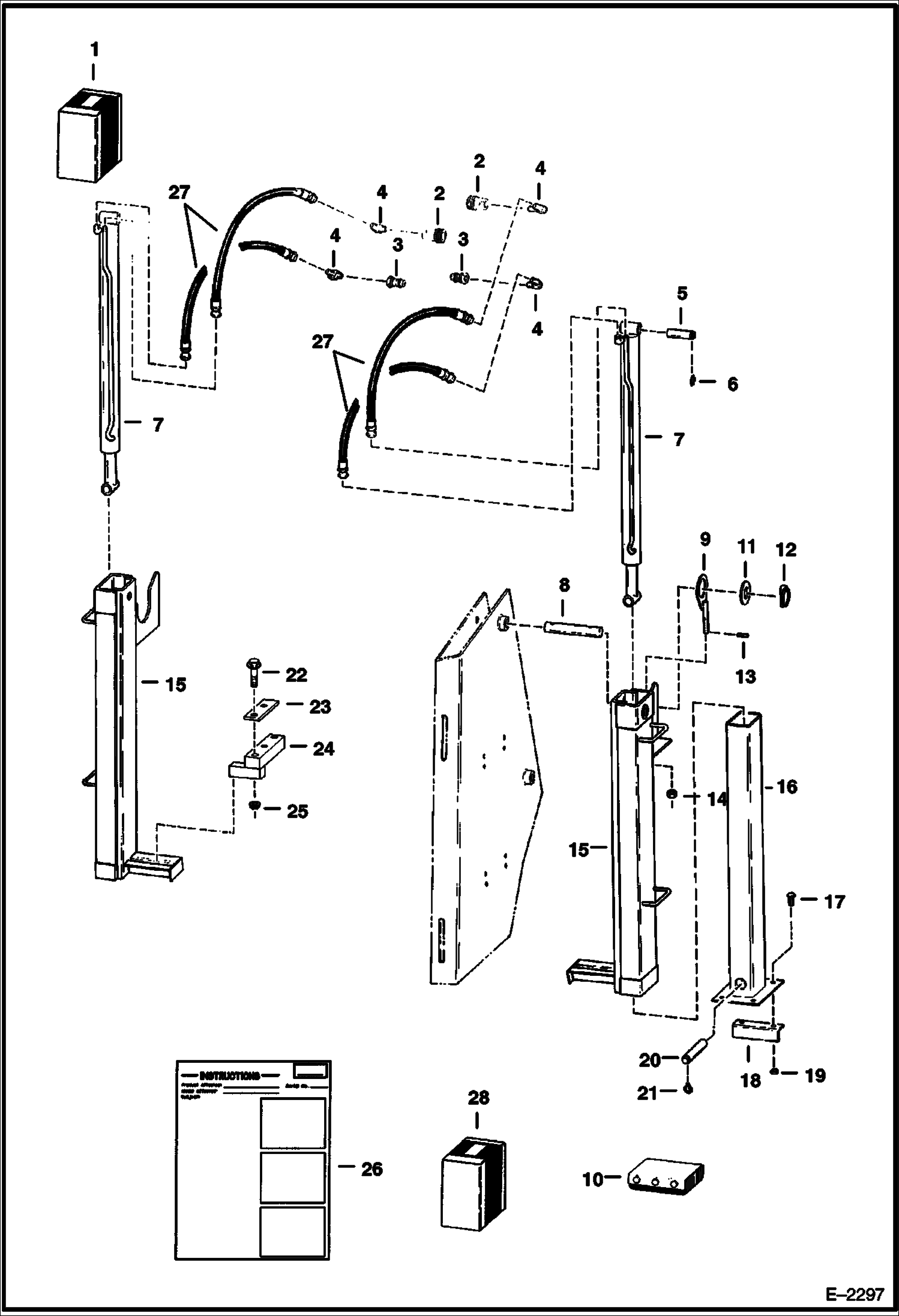

Схема запчастей Bobcat BACKHOE - BACKHOE (Rear Stabilizer) (873) REAR STABILIZERS

Артикул

Название

Примечание

Количество

1

KIT SALES - rear stabilizer - W/Ref. 2-27 - Sales #6711750

2

6648967

QUICK COUPLER female - poppet

2

6667803

COUPLER, FF FEMALE

3

6648969

QUICK COUPLER male - poppet

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

17K5

ELBOW

5

6560668

PIN

6

23J16

SNAP RING Was 662770B - B

7

CYLINDER See Illustration BACKHOE/ B20608

8

6707813

PIN

9

6703819

RETAINER

10

6632446

PAD See BTI235 street - weld on

11

6578768

WASHER

12

6560382

PIN, LOCK ring lock

13

14J1214

ROLL PIN

14

61D10

NUT

15

6707795

CHANNEL

15

6707796

CHANNEL

16

6560664

TUBE

17

17C824

BOLT 5

18

6560678

ANGLE

19

85D8

NUT, 5

20

6560669

PIN

21

22J16

SNAP RING Was 1320431B - B

22

31C1256

BOLT

23

6706465

SPACER

24

6706456

MOUNT R.H.

24

6706457

MOUNT L.H.

25

83D12

NUT

26

6720254

INSTRUCTIONS Was 6570919 - B

27

6578173

HOSE

28

6718959AR

KIT translation

28

6718959BR

KIT translation

28

6570919AR

INSTRUCTIONS translated

28

6570919BR

INSTRUCTIONS translated

Выбрано товаров: 36
