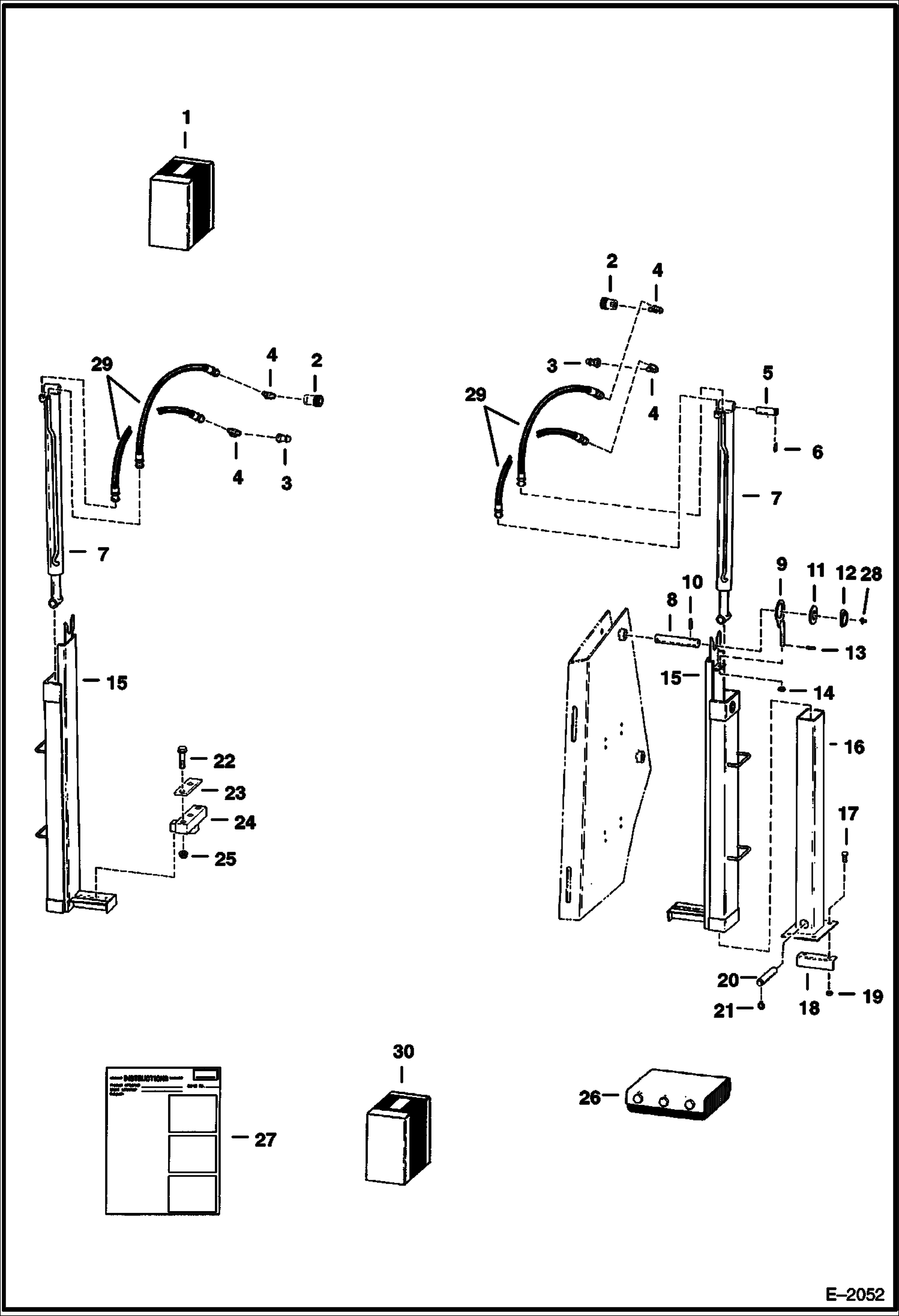

Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer) (853) (863) REAR STABILIZERS

1

KIT SALES - rear stabilizer - W/Ref. 2-29 - Sales #6711748

2

2342026

COUPLING female - poppet

2

6667803

COUPLER, FF FEMALE

3

2341398

COUPLER male - poppet

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

83F5

ELBOW Use with poppet couplers

4

17K5

ELBOW Use with flush face couplers

5

6560668

PIN

6

23J16

SNAP RING Was 662770B - B

7

CYLINDER See Illustration BACKHOE/ B20608

8

PIN NLA - Order 6713054 - Was 6701015 - A

8

6713054

PIN with grease zerk hole

9

6703819

RETAINER Was 6578760 - A

10

14J3732

PIN, STRAIGHT 5

11

6578768

WASHER

12

6560382

PIN, LOCK ring lock

13

14J1214

ROLL PIN

14

61D10

NUT

15

6701008

CHANNEL

16

6560664

TUBE

17

17C824

BOLT 5

18

6560678

ANGLE

19

85D8

NUT, 5

20

6560669

PIN

21

22J16

SNAP RING Was 1320431B - B

22

31C1256

BOLT

23

6701014

SPACER

24

6701016

MOUNT

25

83D12

NUT

26

6632446

PAD See BTI235 street - weld on

27

6720254

INSTRUCTIONS

28

10H25

FITTING, GREASE 5

29

6530884

HOSE Was 5207800B - A

30

6718960AR

KIT translation

30

6718960BR

KIT translation

30

6720254AR

INSTRUCTIONS translated

30

6720254BR

INSTRUCTIONS translated
