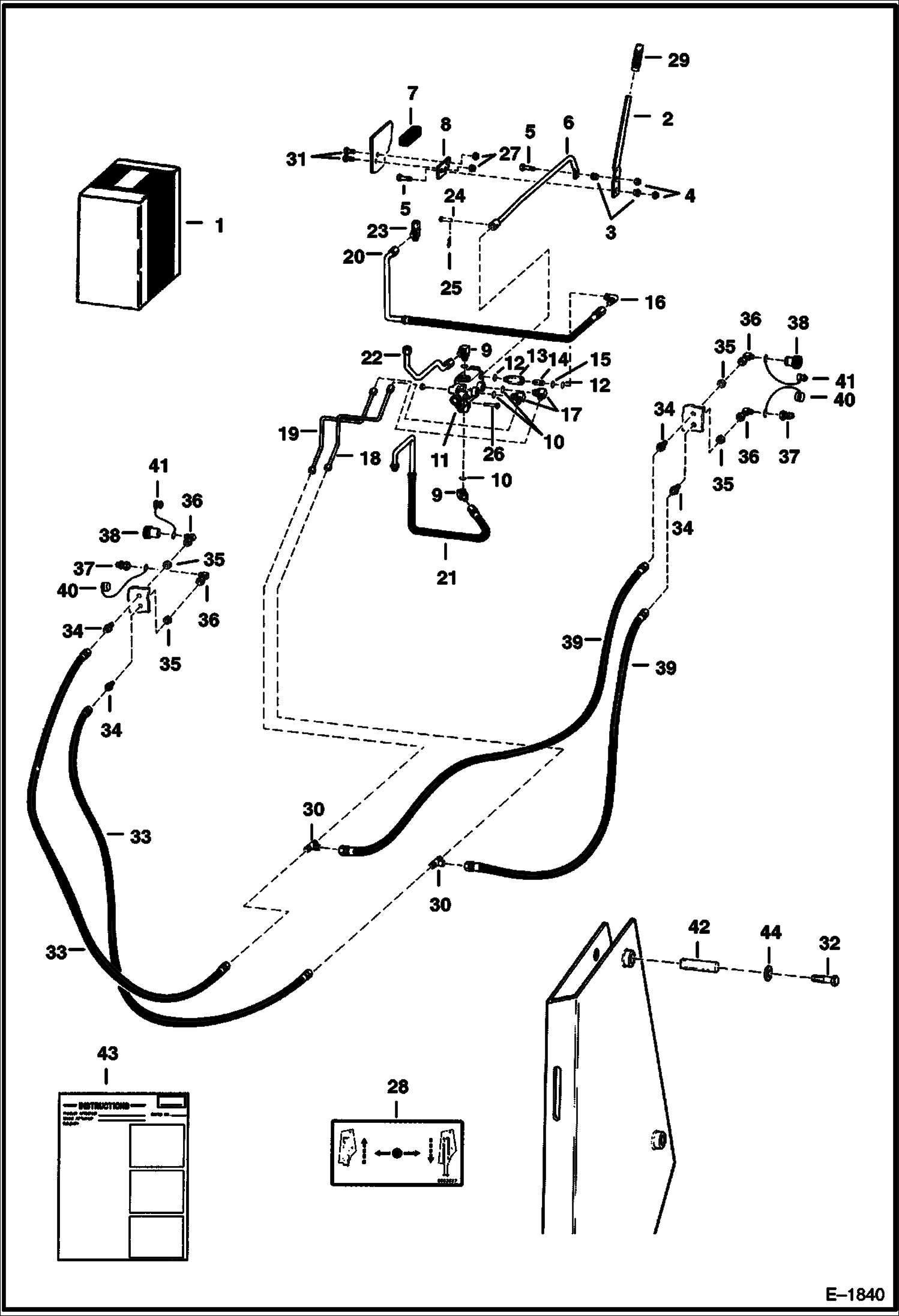

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Kit) (Quick-Tach Stabilizer) (843 11001 - 14999) REAR STABILIZERS

1

KIT NLA - Ref. 2-44 - Was 6577387 - A

2

6564395

LEVER

3

6630081

BUSHING

4

85D6

NUT, 5

5

17C624

BOLT 5

6

6560824

ROD

7

6560849

STRIP

8

6560825

MOUNT

9

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104B - A

10

79K12

O RING 10

11

6513713

VALVE See Illustration BACKHOE/ C2509

12

79K10

O RING 10

13

FITTING NLA - Was 6559570 - A

14

6559571

CHECK VALVE

15

25K20022

O RING 10

16

17K7

ELBOW

17

1300913

ELBOW W/Ref. 10

18

6563561

TUBE

19

6563562

TUBE

20

HOSE NLA - purchase locally - Was 6563936 - A

21

6563935

HOSE

22

6563937

TUBE

23

13K7

FITTING

24

1319560

PIN

25

6513495

COTTER PIN

26

17C640

BOLT 5

27

61D6

NUT 5

28

6562627

DECAL

29

6557730

GRIP

30

10K5

TEE

31

17C616

BOLT 5

32

35C816

BOLT

33

6563438

HOSE

34

45K5

FITTING

35

86F5

NUT

36

1631632

ELBOW

37

2341398

COUPLER male

38

2342026

COUPLING female

38

25K30018

O RING 10

39

6563437

HOSE

40

1513549

CAP

41

1519324

PLUG

42

6567702

PIN

43

6570550

INSTRUCTIONS

44

6564692

WASHER
