BACKHOE (Rear Stabilizer Mount Kit) (753 F & G Series) (763 F & G Series) (753 J Series) (S130)

Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer Mount Kit) (753 F & G Series) (763 F & G Series) (753 J Series) (S130) REAR STABILIZERS

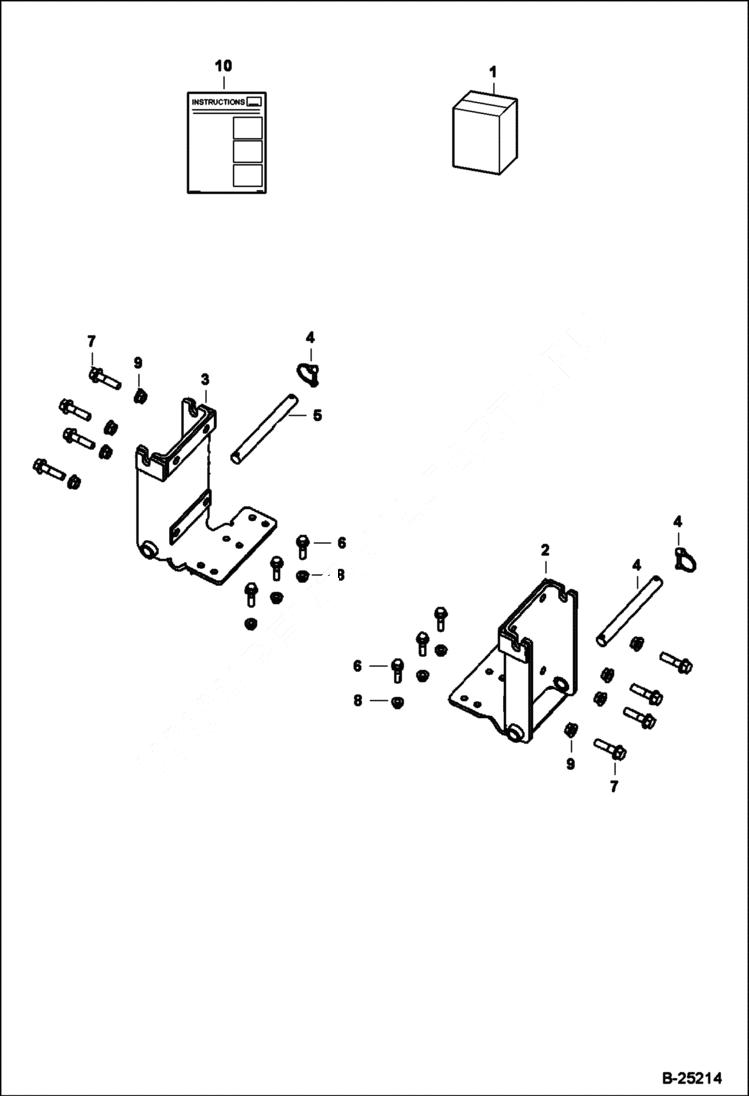

Схема запчастей Bobcat BACKHOE - BACKHOE (Rear Stabilizer Mount Kit) (753 F & G Series) (763 F & G Series) (753 J Series) (S130) REAR STABILIZERS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KIT SALES #7100245 - W/Ref. 2-9

2

7100246

MOUNT, STAB RH R.H.

3

7100247

MOUNT, STAB LH L.H.

4

6656009

PIN

5

6811474

PIN

6

31C832

BOLT

7

31C1040

BOLT

8

53D8

NUT

9

53D10

NUT

10

6987439

INSTRUCTIONS
