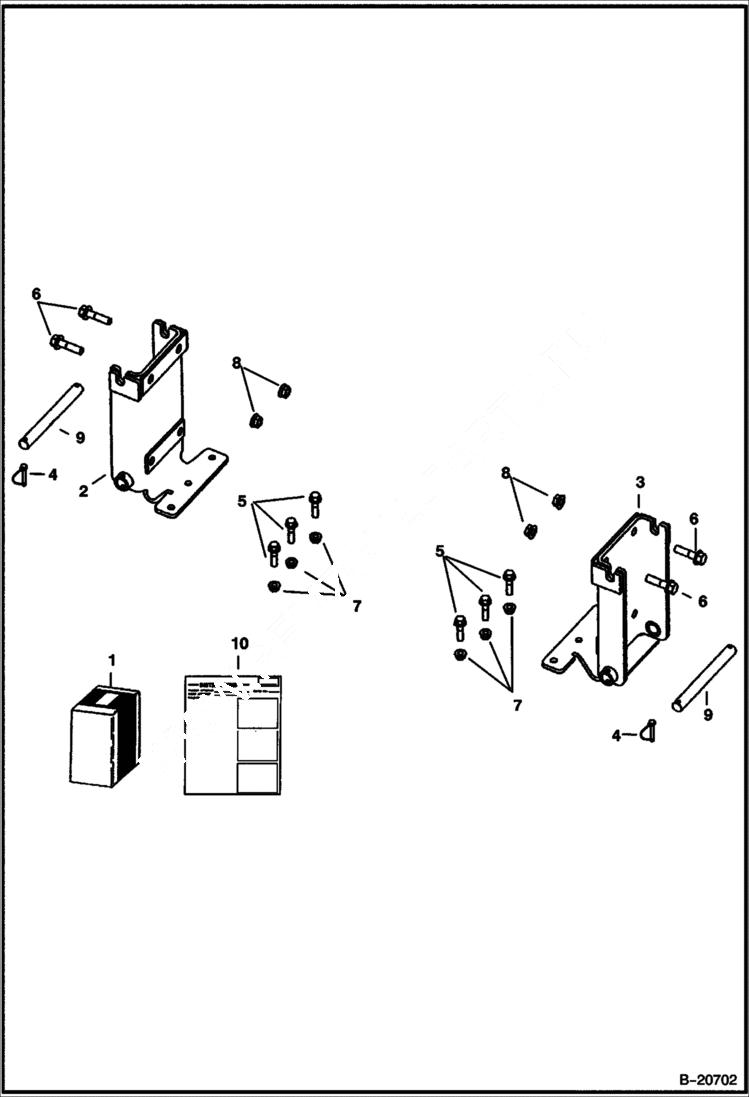

Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer Mount Kit) (753) (763F) (G Series) REAR STABILIZERS

1

KIT NLA - W/Ref. 2-10 - Order 7100245 kit - Was Sales #6811453 - A

2

7100246

MOUNT, STAB RH R. H. - Was 6811477 - A

3

7100247

MOUNT, STAB LH L. H. - Was 6811478 - A

4

6656009

PIN

5

31C832

BOLT

6

31C1040

BOLT

7

53D8

NUT

8

53D10

NUT

9

6811474

PIN

10

6987439

INSTRUCTIONS Was 6901505 - B
