Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer Kit) (G Series) REAR STABILIZERS

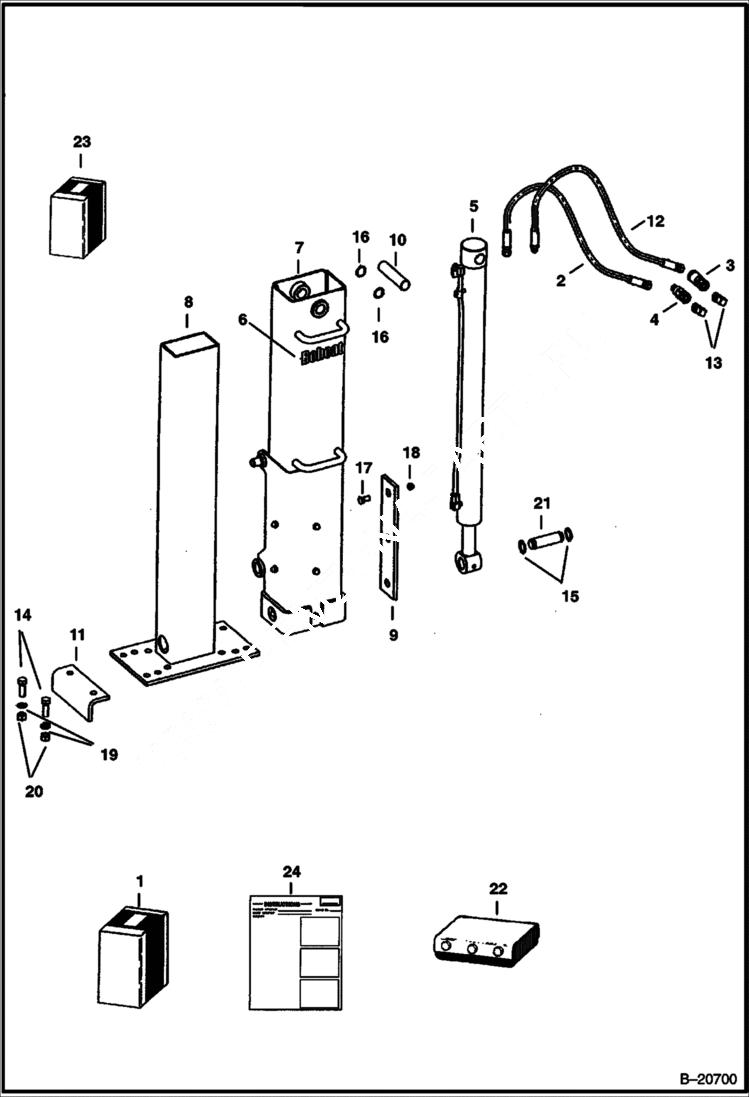

Схема запчастей Bobcat BACKHOE - BACKHOE (Rear Stabilizer Kit) (G Series) REAR STABILIZERS

Артикул

Название

Примечание

Количество

1

6811449

KIT, STABILIZER REAR See Illustration BACKHOE/ B20702 See Illustration BACKHOE/ B20704 See Illustration BACKHOE/ B20703 See Illustration BACKHOE/ MS1316 See Illustration BACKHOE/ MS1315 rear stabilize

2

6578173

HOSE

3

6667803

COUPLER, FF FEMALE

4

6667804

COUPLER, FF MALE

5

CYLINDER See Illustration BACKHOE/ B20701

6

6811238

DECAL logo

7

6811468

CHANNEL

8

6811469

TUBE

9

6811470

STRIP wear

10

6811471

PIN

11

6811472

CLEAT

12

6811473

HOSE

13

17KB0606

FITTING Was 17KV00005B - A

14

17C828

BOLT

15

22J16

SNAP RING Was 1320431B - B

16

23J16

SNAP RING Was 662770B - B

17

39C616

BOLT, PLOW

18

48D6

NUT

19

4E8

WASHER lock

20

61D8

NUT 5

21

6560669

PIN

22

6660164

PAD 4.50'' x 11.25'' bolt pattern

22

6812936

PAD, STREET 4.50'' x 6'' bolt pattern

22

STREEET PAD KIT SALES #6812937 - pair of (2)

23

6811644AR

KIT translation

23

6811644BR

KIT translation

24

6901505

INSTRUCTIONS

24

6987450

INSTRUCTIONS for M series loaders

Выбрано товаров: 28
