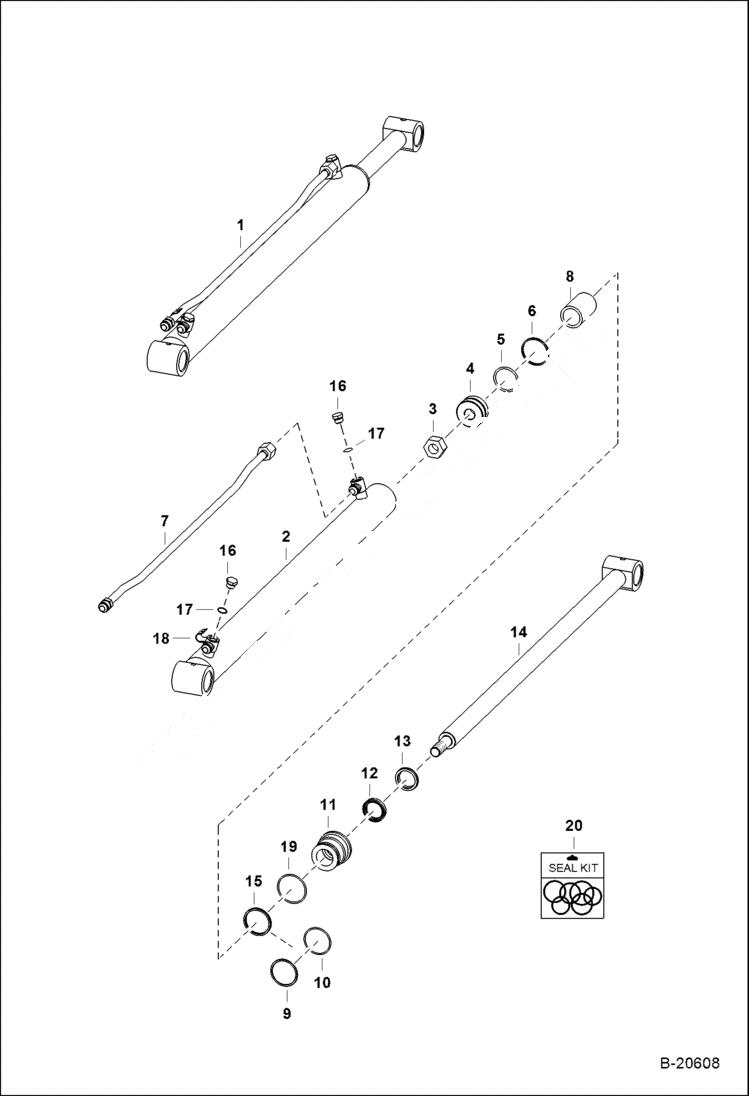

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Cylinder) (Rear Stabilizer With Replaceable Tube) REAR STABILIZERS

1

CYLINDER NLA - Ref. 2-14, 16 & 8 - Order 6587789 & 6588189 - Was 6592983 - A

1

6587789

CYLINDER, LIFT

2

6587792

CASE Was 6592989 - A

3

92D12

NUT Was 86D000012B - B

4

6504931

PISTON

5

54K30118

O-RING Was NSS - D

6

6516231

SEAL Was NSS - D

7

6529382

TUBE for non inertia welded cyl. - Was 6592984 - A

7

6588189

TUBE for inertia welded cyl.

8

6500892

SPACER

9

54K40124

O-RING Was NSS - D

10

73K224

RING back-up - Was NSS - D

11

6538595

HEAD, CYL HYD Was 6504933 - A

12

6667323

SEAL u-cup - Was NSS - D

13

6666542

SEAL, WIPER ROD Was NSS - D

14

6592903

ROD

15

7008781

SEAL, QUAD

16

PLUG NLA - flat boss face - Was 47K-2 - A

16

90KV2

PLUG tapered boss face

17

79K3

O RING 10 for flat boss face

17

95K3

O'RING for tapered boss face

18

6690910

CLAMP

19

82K136

O-RING

20

7137771

SEAL KIT Ref. 3, 5, 6, 12, 13, 15, & 19 - Was 6803472 - A
