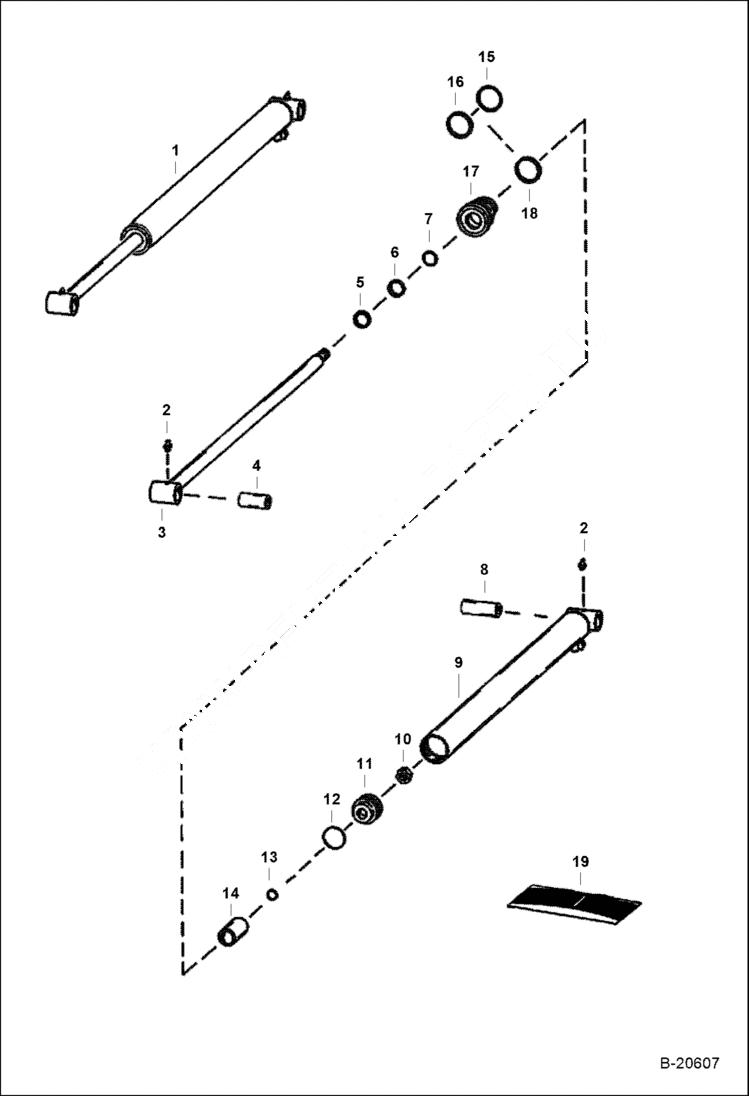

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Cylinder) (Rear Stabilizer With Weld-on Tube) REAR STABILIZERS

1

CYLINDER NLA - lift - Order 6592983

2

10H35

FITTING, GREASE 10

3

6500767

PISTON ROD

4

6500820

BEARING

5

6666542

SEAL, WIPER ROD Was NSS - D

6

6667323

SEAL u-cup - Was NSS - D

7

O-RING NSS

8

6500821

BEARING

9

CASE NLA - Order 6592989 & 6529382

10

6558196

PISTON

11

92D12

NUT Was 86D000012B - B

12

O-RING NSS

13

O-RING NSS

14

SPACER NSS

15

54K40124

O-RING Was NSS - D

16

73K224

RING back-up - Was NSS - D

17

6538595

HEAD, CYL HYD Was 6504933 - A

18

7008781

SEAL, QUAD

19

7137771

SEAL KIT Ref. 5, 6, 11, 17, & 18 - Was 6803472 - A
