Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer) (Quick-Tach) (7753) (753L) (763) (773) REAR STABILIZERS

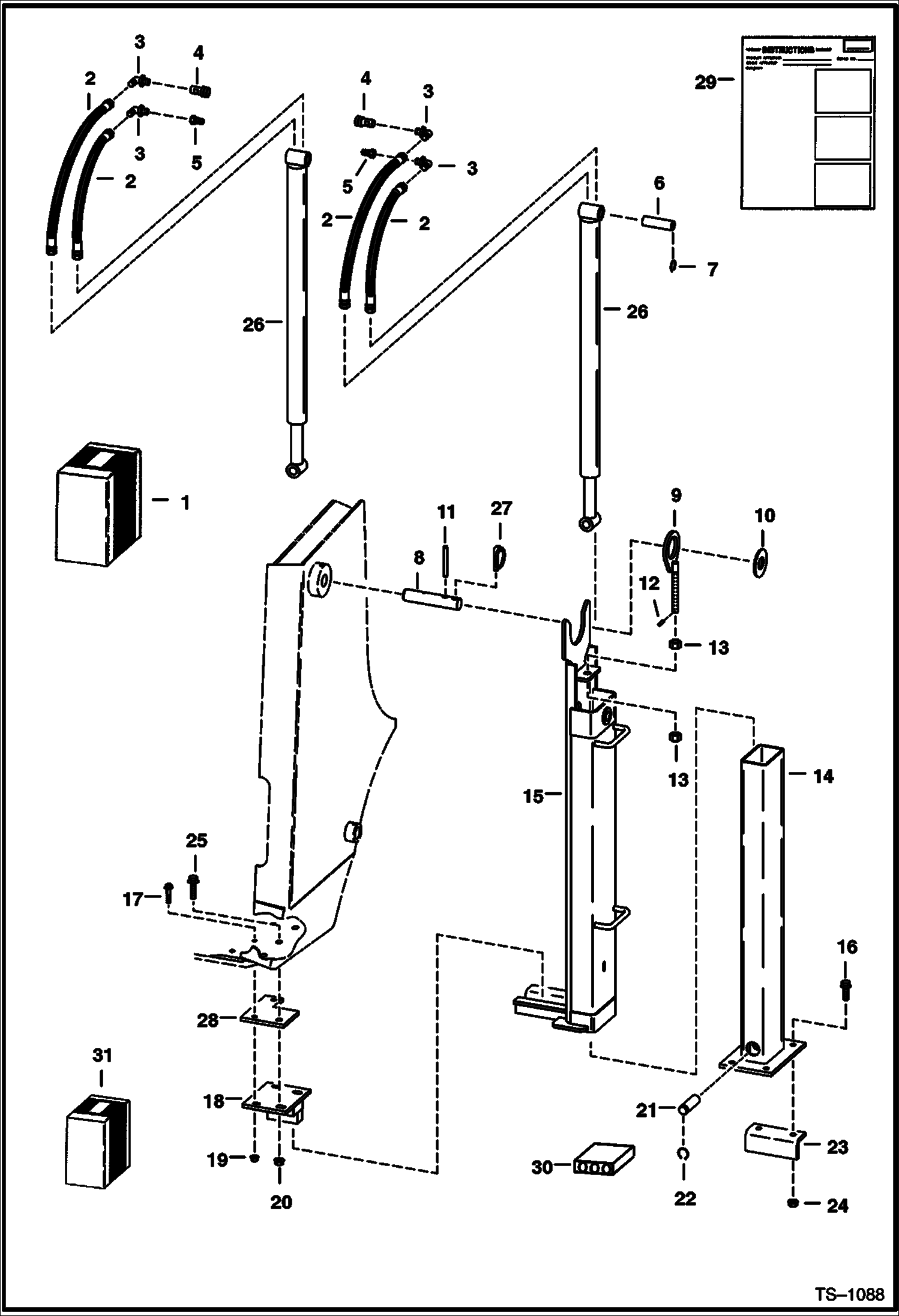

Схема запчастей Bobcat BACKHOE - BACKHOE (Rear Stabilizer) (Quick-Tach) (7753) (753L) (763) (773) REAR STABILIZERS

Артикул

Название

Примечание

Количество

1

KIT SALES - Ref. 2-28 - Sales #6711754

2

6530884

HOSE

3

17K5

ELBOW

4

6648967

QUICK COUPLER female - poppet - Was 6657038 - A

4

6667803

COUPLER, FF FEMALE

5

6648969

QUICK COUPLER male - poppet - Was 6657037 - A

5

6667804

COUPLER, FF MALE

5

6669657

SEAL KIT

6

6560668

PIN

7

23J16

SNAP RING Was 662770B - B

8

6703817

PIN MOUNT 6.32'' long

9

6703819

RETAINER

10

6578768

WASHER

11

14J3756

PIN Was 14J-375 - D

12

14J1214

ROLL PIN

13

61D10

NUT

14

6560664

TUBE

15

6703824

CHANNEL R.H.

15

6703821

CHANNEL L.H.

16

31C824

BOLT 10

17

31C628

BOLT

18

6704343

MOUNT BLOCK R.H. - Was 6703034 - A

18

6704344

MOUNT BLOCK L.H. - Was 6703035 - A

19

83D6

NUT 5

20

83D8

NUT 5

21

6560669

PIN

22

22J16

SNAP RING Was 6538286 - B

23

6560678

ANGLE

24

85D8

NUT, 5

25

31C832

BOLT

26

CYLINDER See Illustration BACKHOE/ B20608

27

6560382

PIN, LOCK ring lock

28

6703816

SPACER

29

6570919

INSTRUCTIONS Was 6570907 - D

30

6632446

PAD See BTI235 weld on

31

6718959AR

KIT translation

31

6718959BR

KIT translation

31

6570919AR

INSTRUCTIONS translated

31

6570919BR

INSTRUCTIONS translated

Выбрано товаров: 39
