Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer) (Quick-Tach) (740 Series 15001 & Above) REAR STABILIZERS

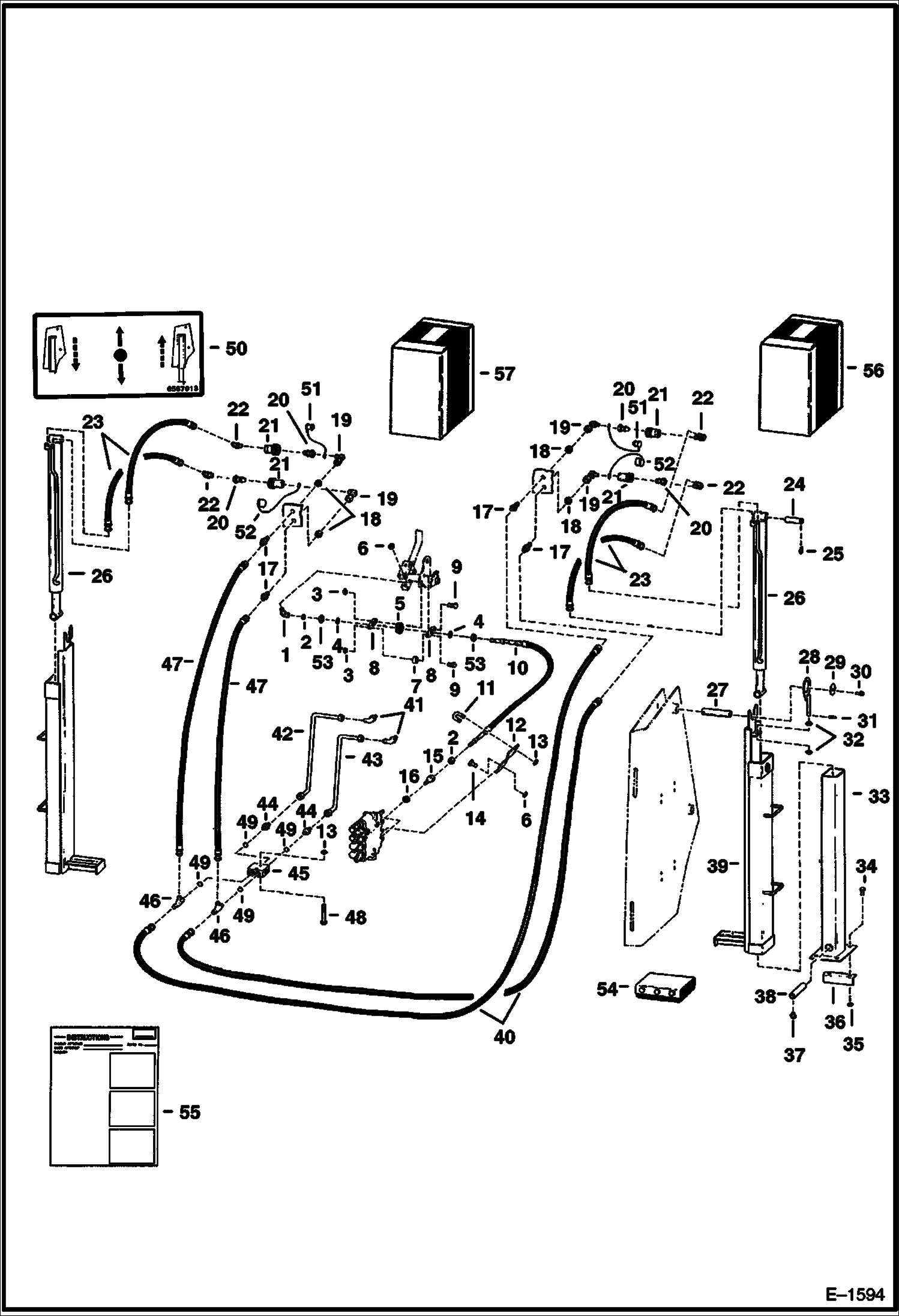

Схема запчастей Bobcat BACKHOE - BACKHOE (Rear Stabilizer) (Quick-Tach) (740 Series 15001 & Above) REAR STABILIZERS

Артикул

Название

Примечание

Количество

1

6554858

BALL JOINT

2

8D4

NUT

3

85D6

NUT, 5

4

6564797

WASHER

5

6631953

BEARING

6

85D4

NUT 5

7

6564798

SPACER

8

6567865

FLANGE

9

17C620

BOLT

10

6631493

CABLE

11

6592766

U-BOLT

12

6565006

MOUNT

13

85D5

NUT 5

14

17C416

BOLT

15

6565005

ADAPTER

16

7D4

NUT

17

45K5

FITTING

18

86F5

NUT

19

1631632

ELBOW

20

2341398

COUPLER male

21

2342026

COUPLING female

21

25K30018

O RING 10

22

83F5

ELBOW

23

6530884

HOSE Was 5207800B - A

24

6560668

PIN

25

23J16

SNAP RING Was 662770B - B

26

CYLINDER See Illustration BACKHOE/ B20608 See Illustration BACKHOE/ B20607

27

6567072

PIN

28

6567080

RETAINER

29

6564692

WASHER

30

35C816

BOLT

31

14J1214

ROLL PIN

32

61D10

NUT

33

6560664

TUBE

34

17C824

BOLT 5

35

85D8

NUT, 5

36

6560678

ANGLE

37

6538286

SNAP RING retaining - Was 1320431B - A

38

6560669

PIN

39

6578759

CHANNEL R.H. - Was 6567062 - A

39

6578757

CHANNEL L.H. - Was 6567061 - A

40

6563438

HOSE

41

77F7

ELBOW

42

6567847

TUBE

43

6567855

TUBE

44

755051

FITTING W/Ref. 49

45

6630527

VALVE

45

6660645

SEAL KIT

46

21K5

TEE W/Ref. 49

47

6563437

HOSE

48

17C536

BOLT

49

79K6

O RING 10

50

6567013

DECAL

51

1513549

CAP

52

1519324

PLUG

53

8D5

NUT

54

6632446

PAD See BTI235 weld on

55

6566773

INSTRUCTIONS

56

6565025

KIT auxiliary control - Ref. 1-16

57

6567725

KIT hyd. - Ref. 17-21, 27, 29, 35, 40-52, 55 & 56
