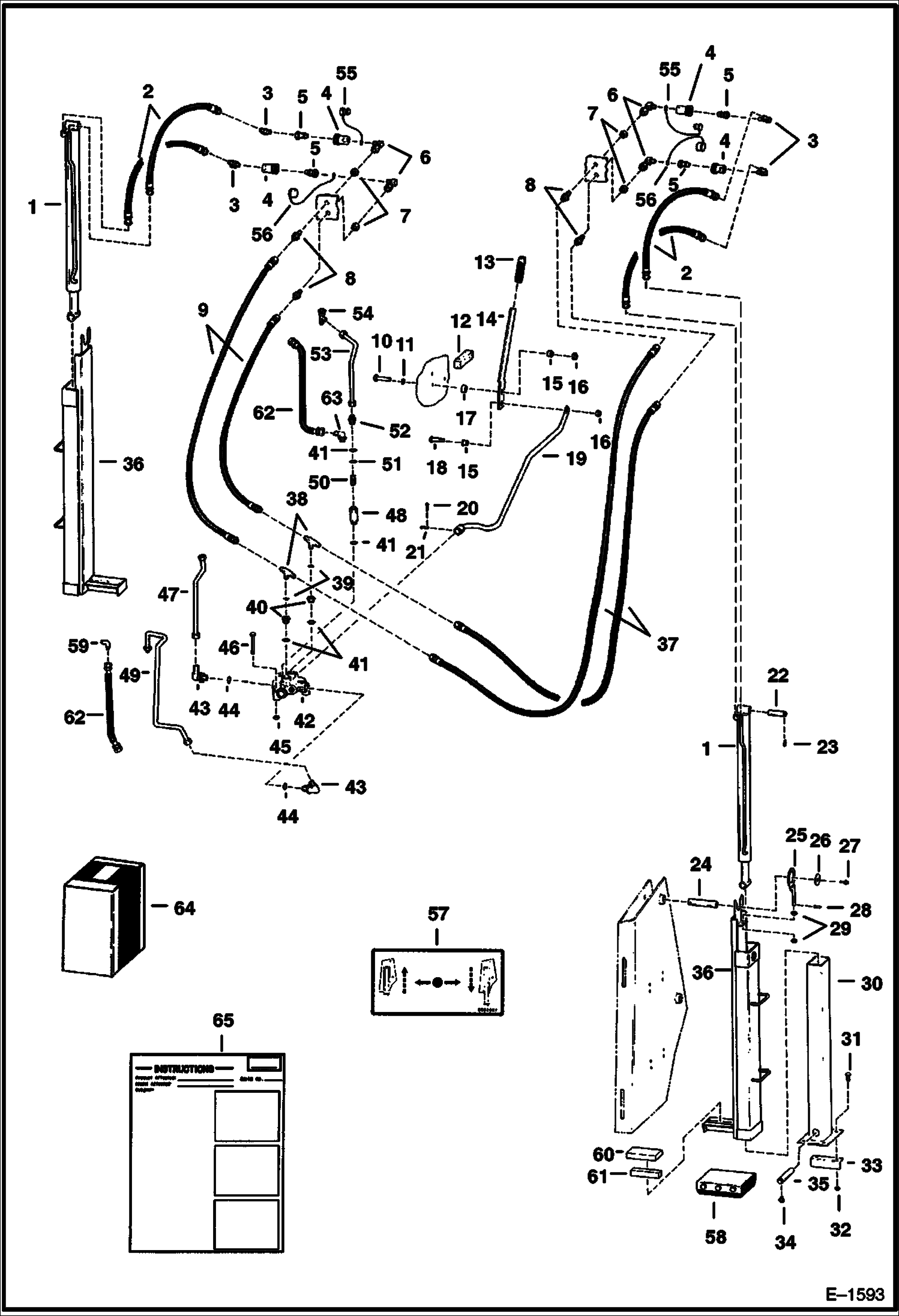

Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer) (Quick-Tach) (630) (640) (730) (740 Series 11001 - 14999) REAR STABILIZERS

1

CYLINDER See Illustration BACKHOE/ B20608 See Illustration BACKHOE/ B20607

2

6530884

HOSE Was 5207800B - A

3

83F5

ELBOW

4

2342026

COUPLING female

4

25K30018

O RING 10

5

2341398

COUPLER male

6

1631632

ELBOW

7

86F5

NUT

8

45K5

FITTING

9

6563437

HOSE

10

17C632

BOLT 5

11

27E6

WASHER 5

12

STRIP NLA - foam - Order 1 ft. (304,8 mm) of 6554274 - Was 6560849 - A

13

6557730

GRIP

14

6564395

LEVER

15

6630081

BUSHING

16

85D6

NUT, 5

17

6560677

BUSHING

18

17C624

BOLT 5

19

ROD NLA - Was 6563362 - A

20

6513495

COTTER PIN

21

1319560

PIN

22

6560668

PIN

23

23J16

SNAP RING Was 662770B - B

24

6567072

PIN

25

6703819

RETAINER Was 6578760 - A

26

6564692

WASHER

27

35C816

BOLT

28

14J1214

ROLL PIN

29

61D10

NUT

30

6560664

TUBE

31

17C824

BOLT 5

32

85D8

NUT, 5

33

6560678

ANGLE

34

22J16

SNAP RING Was 1320431B - B

35

6560669

PIN

36

6578759

CHANNEL R.H. - Was 6567062 - A

36

6578757

CHANNEL L.H. - Was 6567061 - A

37

6563438

HOSE

38

19K5

FITTING W/Ref. 39

39

79K6

O RING 10

40

3580358

ADAPTER W/Ref. 41

41

79K10

O RING 10

42

6513713

VALVE See Illustration BACKHOE/ C2509

43

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

44

79K12

O RING 10

45

61D6

NUT 5

46

17C640

BOLT 5

47

6560680

TUBE

48

FITTING NLA - Was 6559570 - A

49

6560706

TUBE 630 & 640 Series

49

6560687

TUBE 730 & 740 Series

50

6559571

CHECK VALVE check

51

25K20022

O RING 10

52

15K7

FITTING W/Ref. 41 - use with tube

53

6560705

TUBE 630 & 640 Series

53

6560679

TUBE 730 & 740 Series

54

13K7

FITTING

55

1519324

PLUG

56

1513549

CAP

57

6562627

DECAL

58

6632446

PAD See BTI235 weld on

59

77F7

ELBOW Use with 6577890 hose

60

6567081

PLATE weld on

61

6567082

BLOCK weld on

62

6577890

HOSE

63

17K7

ELBOW W/Ref. 41 - use with hose

64

6567726

REAR AUX. KIT W/Ref. 4-21, 24, 26, 27, 37, 38, 40-43, 45-48, 50, 51, 54-57, 59-63 & 65

65

INSTRUCTIONS NLA - print instructions from bass - Was 6566774 - A
