Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Cylinder) (Stabilizer) (Old Style) (444) (500) REAR STABILIZERS

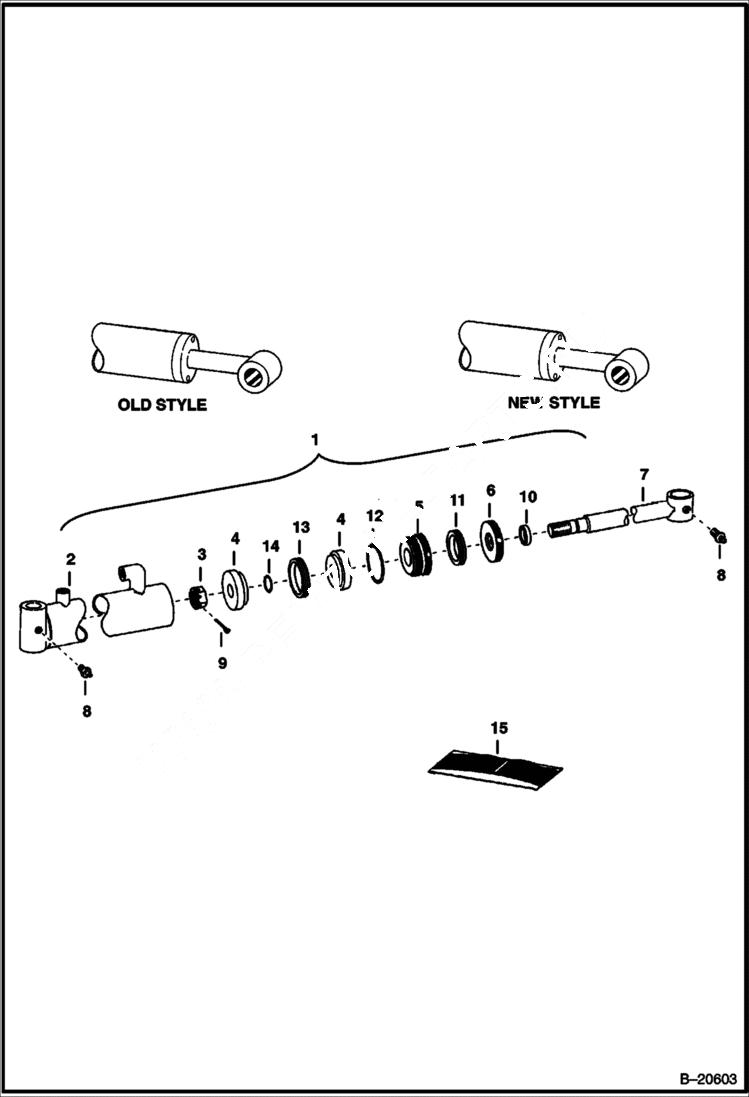

Схема запчастей Bobcat BACKHOE - BACKHOE (Hydraulic Cylinder) (Stabilizer) (Old Style) (444) (500) REAR STABILIZERS

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - Order 6531681

2

CASE NSS

3

3D12

NUT castle - 3/4'' NF

4

PISTON NLA - 2 pieces - Was 6516207 - A

5

GLAND NLA - Was 6505845 - A

6

RETAINER NSS - Was 6505826 - A

7

ROD NLA - Order 6531681 cylinder

8

10H25

FITTING, GREASE 5

9

1F616

PIN

10

SEAL NSS - wiper

11

SEAL NSS - rod

12

O-RING NSS

13

SEAL NSS - piston

14

O-RING NSS

15

6505850

SEAL KIT Ref. 10-14

Выбрано товаров: 15
