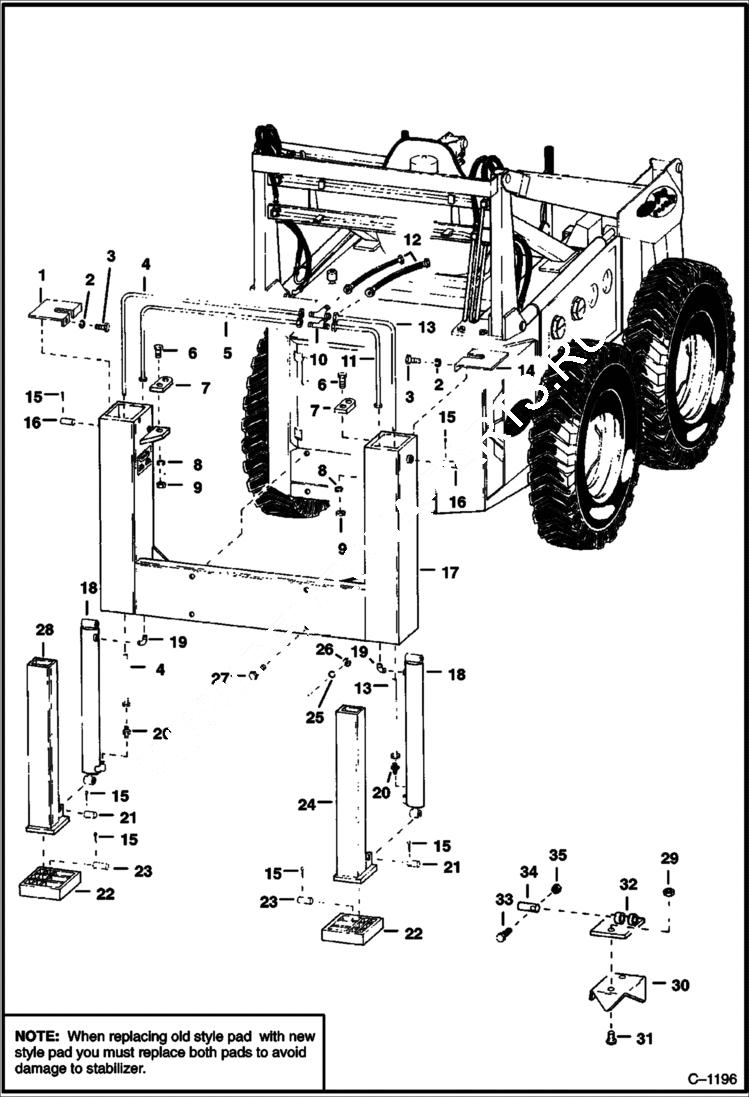

Запчасти Bobcat BACKHOE BACKHOE (Rear Stabilizer) (444) (500) REAR STABILIZERS

1

6506553

COVER L.H.

2

4E6

WASHER

3

17C616

BOLT 5

4

6506546

TUBE

5

6506548

TUBE

6

17C824

BOLT 5

7

6506551

STRAP mounting

8

4E8

WASHER

9

61D8

NUT 5

10

10K5

TEE

11

6506547

TUBE

12

6501055

HOSE

13

6506545

TUBE

14

6506552

COVER

15

1F632

PIN

16

6502324

HINGE PIN

17

MAIN FRAME NLA - Was 6506549 - A

18

CYLINDER See Illustration BACKHOE/ C1050 See Illustration BACKHOE/ B20603

19

83F5

ELBOW

20

89F5

CONNECTR

21

6502648

HINGE PIN

22

PAD NLA - Order Ref. 29-35 - SEE NOTE

23

HINGE PIN NLA

24

6504704

LEG stabilizer - R.H.

25

4E10

WASHER

26

61D10

NUT

27

17C1048

BOLT

28

6504705

LEG stabilizer - L.H.

29

61D7

NUT

30

6503505

PAD

31

7C720

SCREW

32

6501889

PLATE

33

17C532

BOLT 5

34

6503507

HINGE PIN

35

91D5

NUT 5 Was 81D000005B - A
