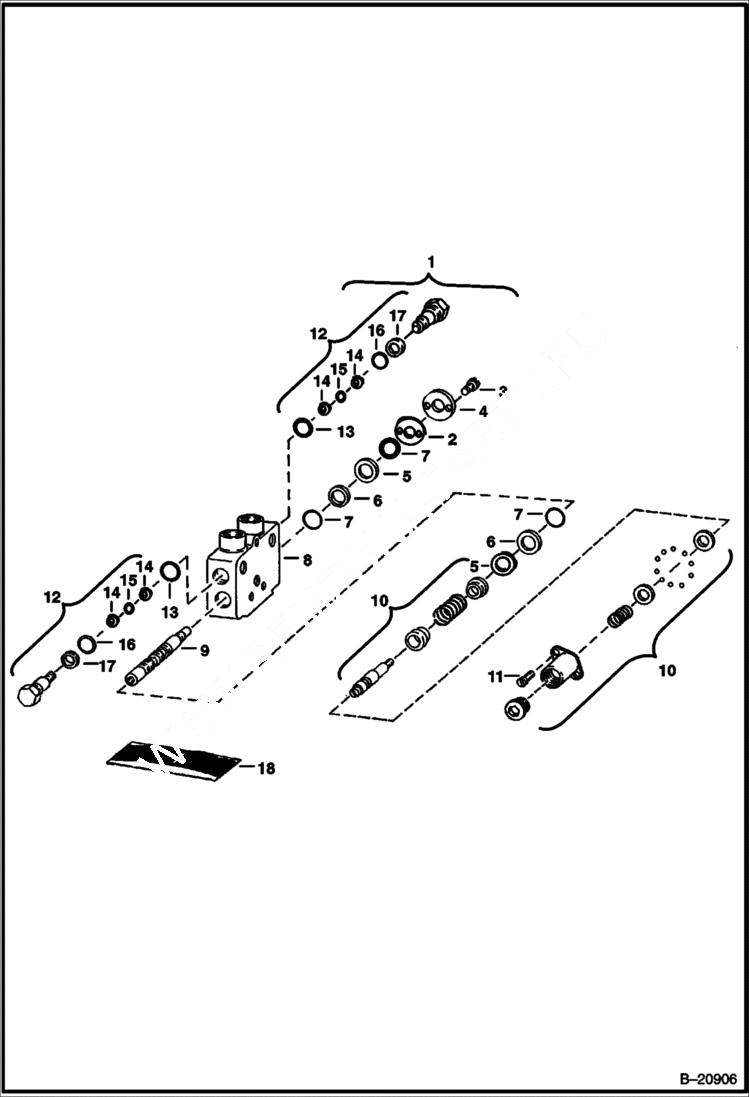

Запчасти Bobcat BACKHOE BACKHOE (Rear Auxiliary Section) (Rear Auxiliary Valve) 911B/914B BACKHOE

1

6647703

SECTION Ref. 2-17

2

6647688

PLATE

3

6647689

SCREW

4

6519941

RETAINER

5

6647690

RETAINER

6

WASHER NSS - back-up

7

O-RING NSS

8

BODY NSS

9

SPOOL NSS

10

6647716

POSITIONER

11

6647717

SCREW

12

6647718

PLUG

13

O-RING NSS

14

WASHER NSS - back-up

15

O-RING NSS

16

O-RING NSS

17

WASHER NSS - back-up

18

6647719

SEAL KIT Ref. 6, 7, 13-17
