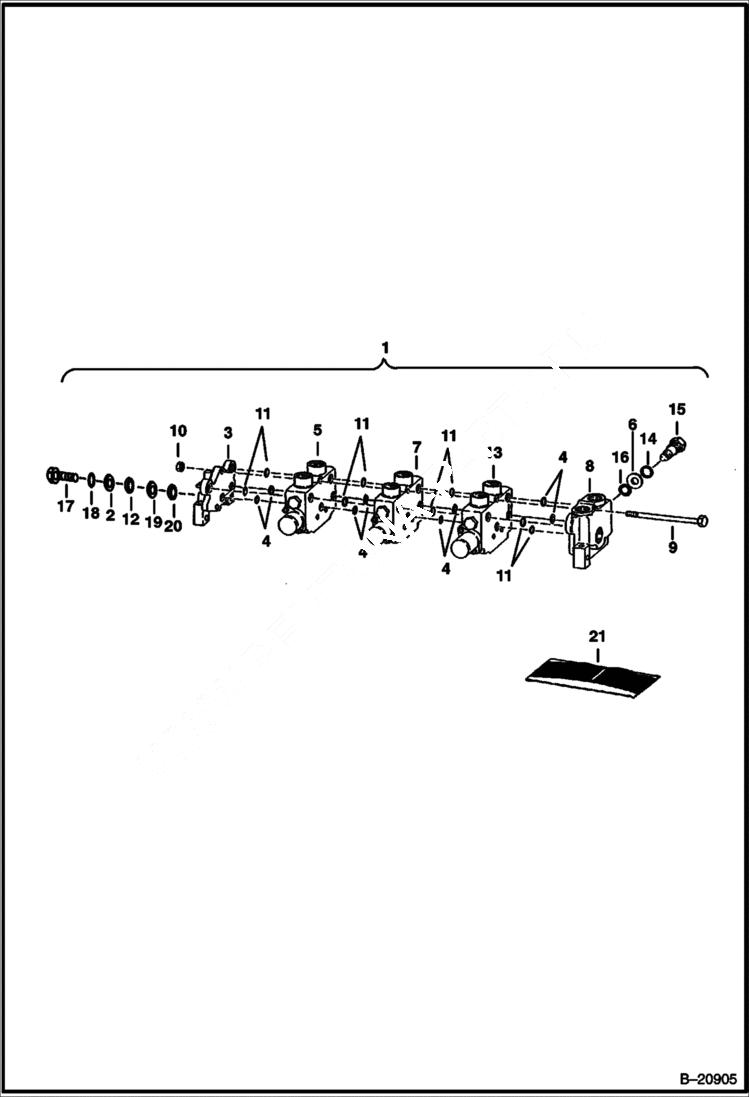

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Control Valve) (Rear Auxiliary) (2400) (2410) 911B/914B BACKHOE

1

6646842

VALVE Ref. 2-21

2

73K016

RING, BACK-UP - D

3

6647701

COVER

4

6647702

O-RING

5

6647703

SECTION See Illustration BACKHOE/ B20906 rear auxiliary

6

WASHER NSS - back-up

7

SECTION See Illustration BACKHOE/ B12212 NLA - tilt cylinder - Was 6647704 - A

8

6647705

COVER

9

6647706

STUD KIT bolts & nuts - Ref. 9 & 10

10

NUT NSS

11

6647707

O-RING

12

58K016

O-RING 10 Was NSS - D

13

6647708

SECTION See Illustration BACKHOE/ B20602 locking pins

14

O-RING NSS

15

6655930

RELIEF VALVE 2500 PSI - Was 6647709 - A

16

O-RING NSS

17

6647711

SLEEVE power beyond

18

6515234

O-RING Was NSS - D

19

73K15

RING backup

20

58K015

O-RING 10

21

6647710

SEAL KIT Ref. 6, 14, 16
