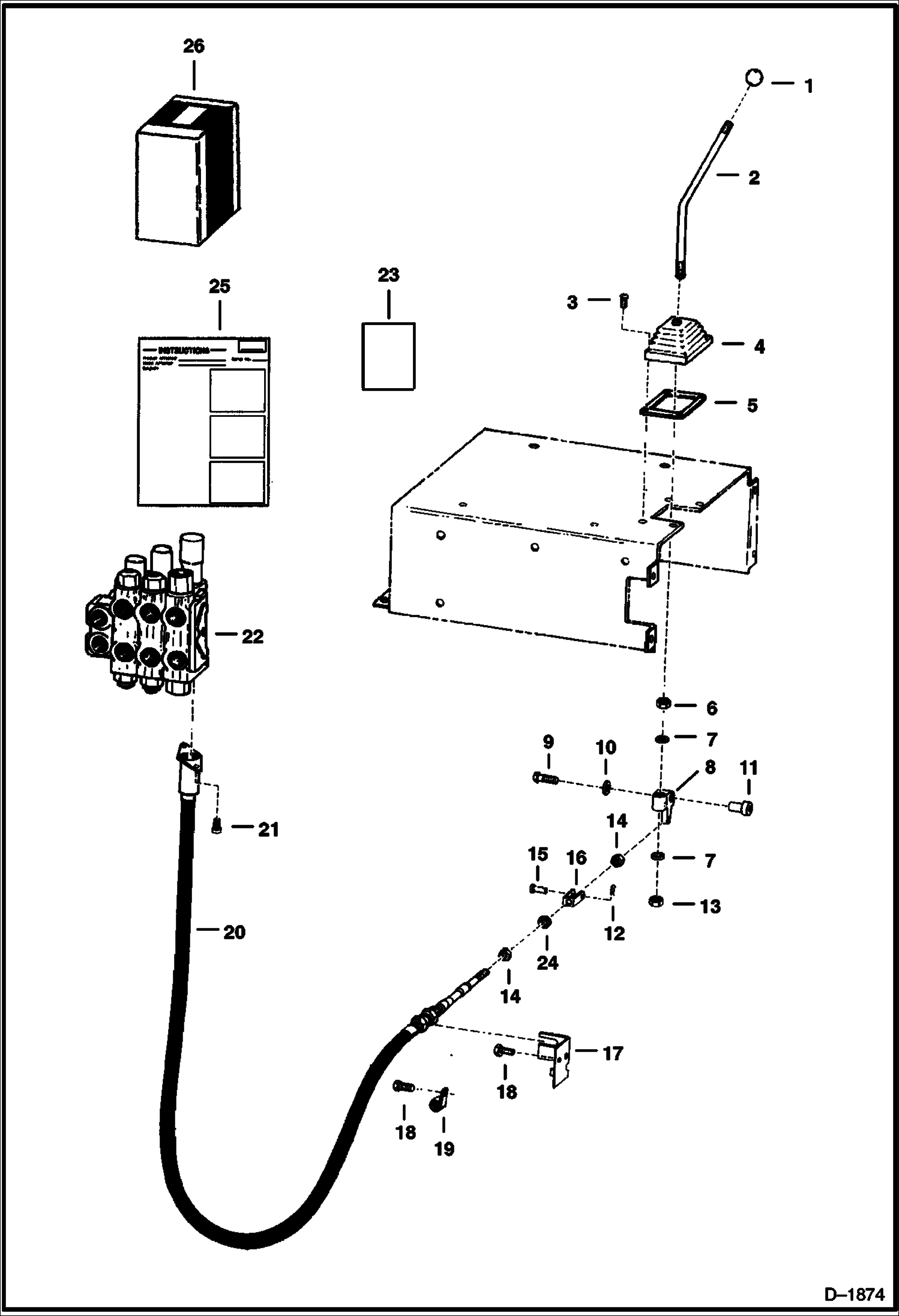

Запчасти Bobcat BACKHOE BACKHOE (Rear Auxiliary Control) (2400) (2410) 911B/914B BACKHOE

1

6515888

KNOB

2

6531289

LEVER Was 6531287 - D

3

24G1012

BOLT

4

BOOT NLA - Was 6585347 - A

5

6585301

RETAINER

6

61D8

NUT 5

7

25E21

WASHER 5

8

6586081

PIVOT

9

17C536

BOLT

10

25E16

WSHR

11

6531288

SHAFT

12

1F208

PIN

13

85D8

NUT, 5

14

62D5

NUT

15

227395

CLEVIS PIN

16

6586077

CLEVIS

17

6586194

BRACKET

18

17C510

BOLT

19

30H30

CLAMP

20

6646491

CABLE ASSY includes all internal parts

20

6664851

KIT w/ bonnet, pin & clevis

21

6588163

SCREW Was 69G000412B - A

22

6646842

VALVE See Illustration BACKHOE/ B20905

23

6583845

DECAL

24

6511638

WASHER

25

6570632

INSTRUCTIONS

26

KIT NLA - rear aux. control - Order Ref. 1-21 & 23-25 - Was 6531297 - A
