Запчасти Bobcat BACKHOE BACKHOE (Rear Auxiliary Hydraulics) (2400) (2410 509212177 & Above) 911B/914B BACKHOE

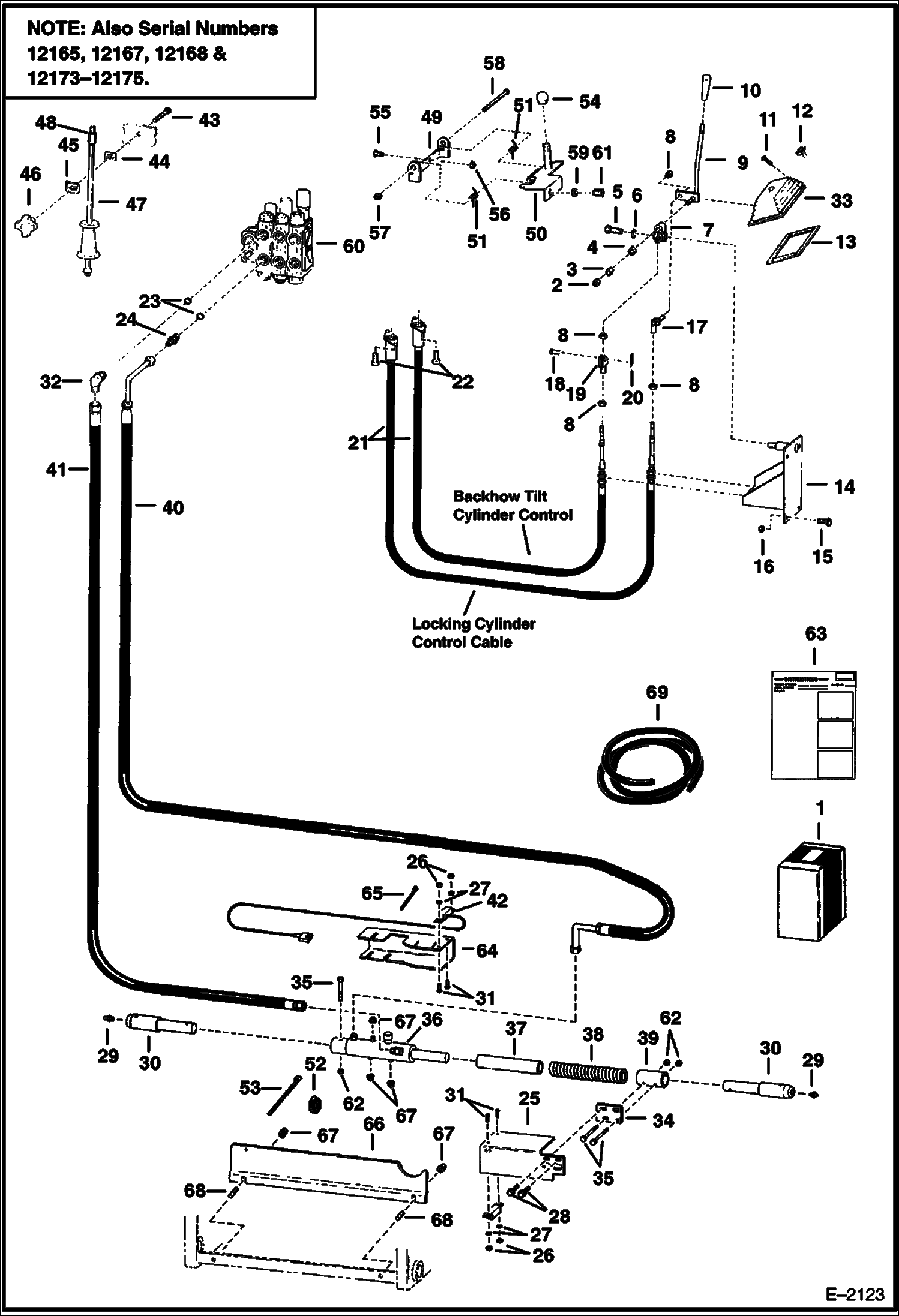

Схема запчастей Bobcat BACKHOE - BACKHOE (Rear Auxiliary Hydraulics) (2400) (2410 509212177 & Above) 911B/914B BACKHOE

Артикул

Название

Примечание

Количество

1

6537280

KIT rear auxiliary - Was SALES - A

2

85D8

NUT, 5

3

61D8

NUT 5

4

25E21

WASHER 5

5

17C510

BOLT

6

25E16

WSHR

7

6586081

PIVOT

8

62D5

NUT

9

6586095

LEVER

10

6510093

HANDLE GRIP

11

24G1012

BOLT

12

6646779

LAMP warning

13

6585301

RETAINER

14

6586082

MOUNT

15

25G510

BOLT

16

61D5

NUT

17

6512356

BALL JOINT

18

227395

CLEVIS PIN

19

6586077

CLEVIS

20

1F208

PIN

21

6646491

CABLE ASSY

21

6664851

KIT W/ bonnet, pin & clevis

22

6588163

SCREW Was 69G000412B - A

23

79K10

O RING 10

24

731795

CONNECTR

25

6535785

MOUNT

26

14D6

NUT

27

12E6

WASHER

28

84G3710

SCREW

29

10H25

FITTING, GREASE 5

30

6529861

PIN

31

86G608

BOLT

32

1300913

ELBOW

33

BOOT NLA - Was 6585347 - A

34

6536926

PLATE

35

17C644

BOLT

36

6593259

CYLINDER See Illustration BACKHOE/ C2895B

37

SHIELD NLA - Order Ref. 69 - Was 6593269 - A

38

6593811

SPRING

39

6586171

COUPLER

40

6538357

HOSE Was 6538537 - D

41

6538354

HOSE

42

6657182

SWITCH ASSY.

43

6534499

BOLT

44

6512909

CLIP

45

6562266

CLAMP

46

6647668

KNOB

47

PULLER NLA - Order otc 1155 slide hammer unit from otc service tools

48

6531154

ADAPTER

49

6532335

BRACKET

50

6532394

LOCK

51

6532603

SPRING

52

42H16

CLAMP, HOSE 5

53

6624289

STRAP, TIE

54

6634534

KNOB

55

25G510

BOLT

56

85D5

NUT 5

57

85D7

NUT

58

17C752

BOLT

59

7D6

NUT

60

6646842

VALVE See Illustration BACKHOE/ B20905

61

6529105

BOLT

62

83D6

NUT 5

63

6720449

INSTRUCTIONS

64

6535787

MOUNT

65

6610510

TIE

66

6536924

COVER

67

6518382

NUT

68

730233

STUD

69

6632149

HOSE bulk - sold per foot

Выбрано товаров: 70
