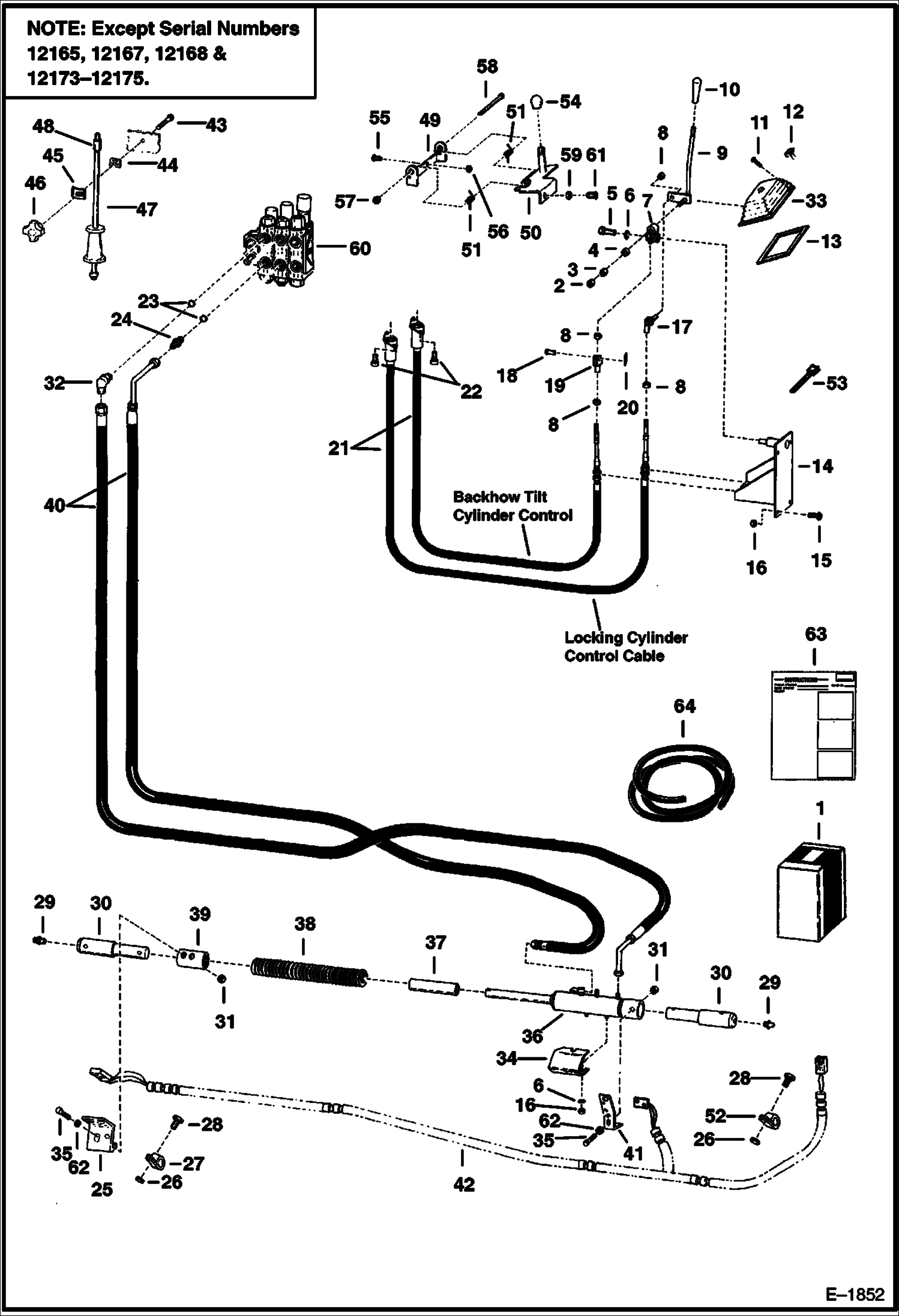

Запчасти Bobcat BACKHOE BACKHOE (Rear Auxiliary Hydraulics) (2400) (2410 509212001 - 12176) 911B/914B BACKHOE

1

KIT SALES - rear auxiliary

2

85D8

NUT, 5

3

61D8

NUT 5

4

25E21

WASHER 5

5

17C510

BOLT

6

25E16

WSHR

7

6586081

PIVOT

8

62D5

NUT

9

6586095

LEVER

10

6510093

HANDLE GRIP

11

24G1012

BOLT

12

6646779

LAMP warning

13

6585301

RETAINER

14

6586082

MOUNT

15

25G510

BOLT

16

61D5

NUT

17

6512356

BALL JOINT

18

227395

CLEVIS PIN

19

6586077

CLEVIS

20

1F208

PIN

21

6646491

CABLE ASSY

21

6664851

KIT W/ bonnet, pin & clevis

22

6588163

SCREW Was 69G000412B - A

23

79K10

O RING 10

24

731795

CONNECTR

25

6531238

MOUNT

26

61D6

NUT 5

27

30H31

CLAMP 10 Was 30H000035B - B

28

17C616

BOLT 5

29

10H25

FITTING, GREASE 5

30

6529861

PIN

31

85D6

NUT, 5

32

1300913

ELBOW

33

BOOT NLA - Was 6585347 - A

34

6586166

BRACKET

35

17C648

BOLT 5 Was 17C000644B - B

36

6593259

CYLINDER See Illustration BACKHOE/ C2895B

37

SHIELD NLA - Order Ref. 64 - Was 6593269 - A

38

6593811

SPRING

39

6586171

COUPLER

40

6584678

HOSE

41

6531239

MOUNT

42

6531240

HARNESS includes 6631898 switches - Also Order qty. 2 of 6649399 hardware kit

42

6631898

SWITCH Also Order 6649399 hardware kit

42

6649399

HARDWARE KIT includes screws, washers, nuts and leaf switch

43

6534499

BOLT Was 6533016 - A

44

6512909

CLIP

45

6562266

CLAMP

46

6647668

KNOB

47

PULLER NLA - Order otc 1155 slide hammer unit from otc service tools

48

6531154

ADAPTER

49

6532335

BRACKET

50

6532394

LOCK

51

6532603

SPRING

52

31H27

CLIP

53

6624289

STRAP, TIE

54

6634534

KNOB

55

25G510

BOLT

56

85D5

NUT 5

57

85D7

NUT

58

17C752

BOLT

59

7D6

NUT

60

6646842

VALVE See Illustration BACKHOE/ B20905

61

6529105

BOLT

62

25E18

WASHER

63

6570620

INSTRUCTIONS

64

6632149

HOSE bulk - sold per foot
