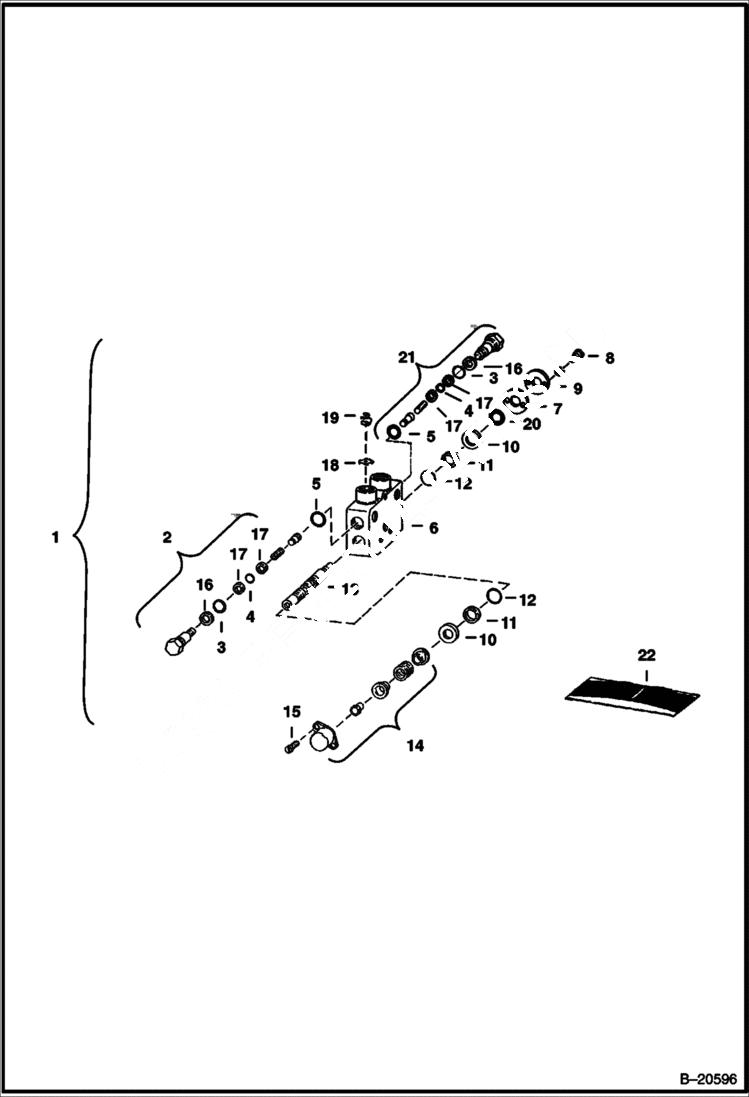

Запчасти Bobcat BACKHOE BACKHOE (Boom Section) (911B) (914B) 911B/914B BACKHOE

1

6647685

SECTION Ref. 2-21

2

6647687

RELIEF VALVE

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

BODY NSS

7

6647688

PLATE

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER

11

WASHER NSS - back-up

12

O-RING NSS

13

SPOOL NSS

14

6647691

BONNET

15

6647692

SCREW

16

WASHER NSS - back-up

17

WASHER NSS - back-up

18

6647683

ORIFICE 0.203

19

6598690

SPRING

20

6647695

WIPER

21

6647696

VALVE relief & anti-cav.

22

6647693

SEAL KIT Ref. 3-5, 16 & 17 - for Ref. 2 & 21

22

6647694

SEAL KIT Ref. 11 & 12
