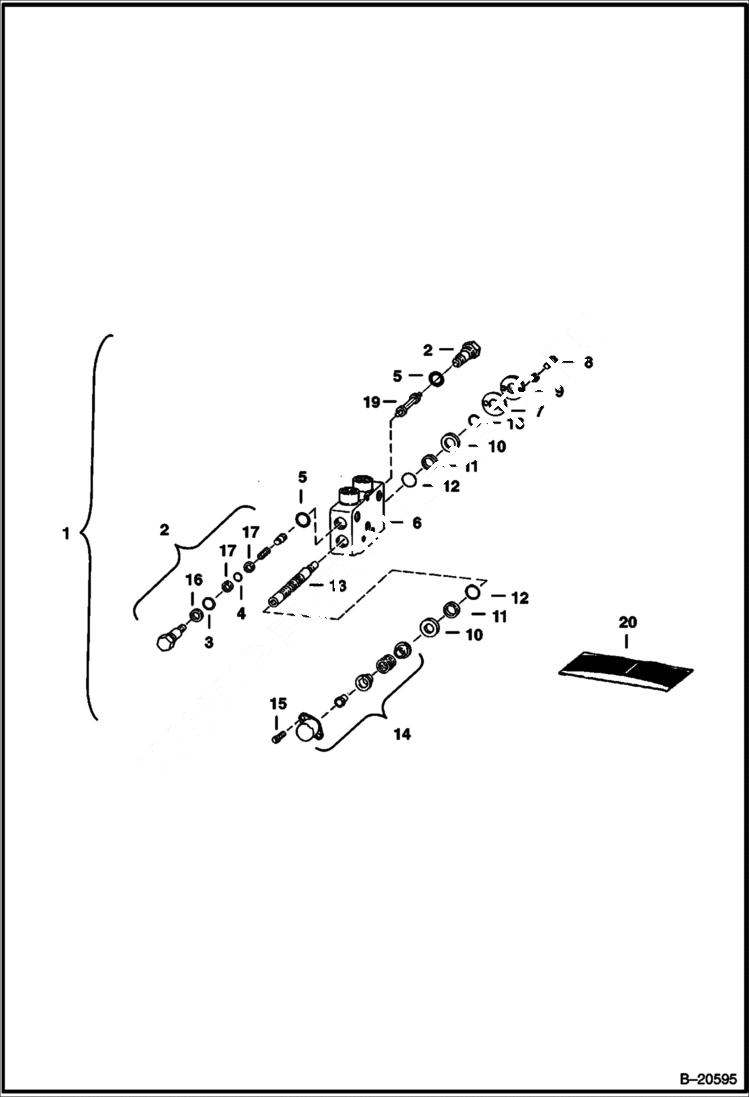

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Section) (911B) (914B) 911B/914B BACKHOE

1

6647682

SECTION Ref. 2-19

2

6647697

CHECK VALVE lock out

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

BODY NSS

7

6647688

PLATE

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER

11

WASHER NSS - back-up

12

O-RING NSS

13

SPOOL NSS

14

6647691

BONNET

15

6647692

SCREW

16

WASHER NSS - back-up

17

WASHER NSS - back-up

18

6647695

WIPER

19

6647698

PISTON unlocking

20

6647693

SEAL KIT Ref. 3-5, 16 & 17

20

6647694

SEAL KIT Ref. 11 & 12
