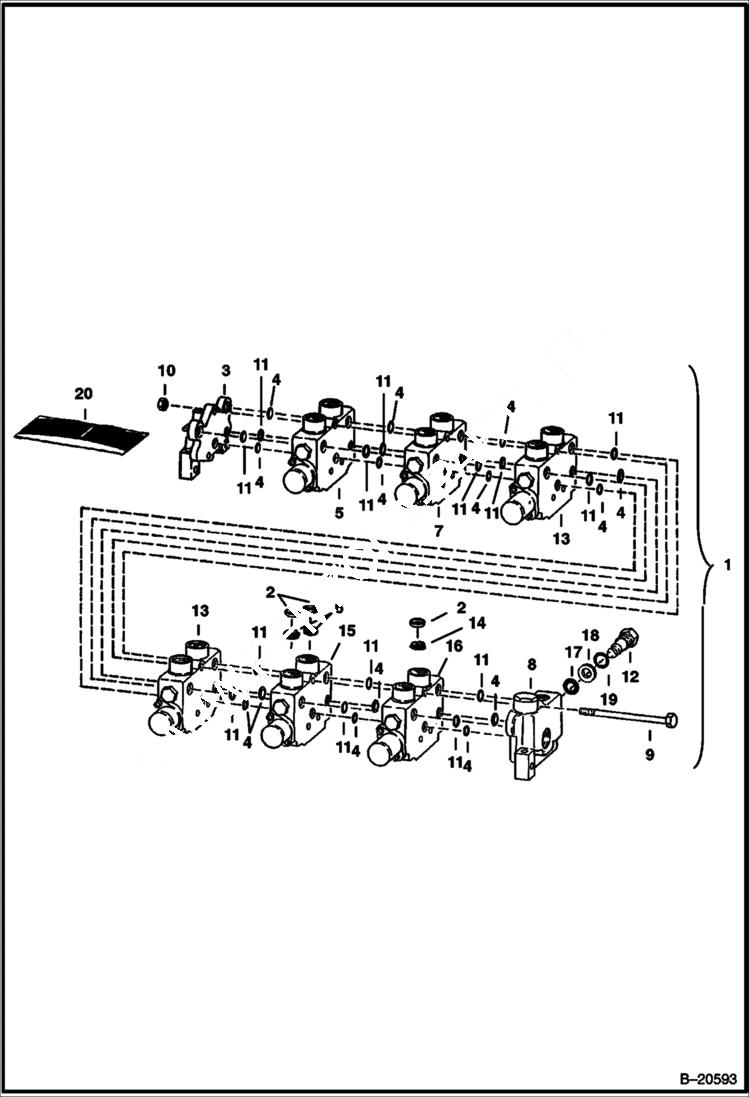

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (911B) (914B) 911B/914B BACKHOE

1

6646843

VALVE

2

6598690

SPRING

3

6647674

END COVER

4

6647702

O-RING Was 6647675 - A

5

6647676

SECTION See Illustration BACKHOE/ B20597 dipper

6

6598689

ORIFICE 0.125

7

6647677

SECTION See Illustration BACKHOE/ B20581A bucket

8

6647678

END COVER

9

6647679

KIT bolts & nuts

10

NUT NSS - Order Ref. 9

11

6647680

O-RING

12

6647681

PLUG W/Ref. 17-19

13

6647682

SECTION See Illustration BACKHOE/ B20595 stabilizer

14

6647683

ORIFICE 0.203

15

SECTION See Illustration BACKHOE/ B20594 NLA - swing - Was 6647684 - A

16

6647685

SECTION See Illustration BACKHOE/ B20596 boom

17

O-RING NSS - Order Ref. 20

18

WASHER NSS - back-up

19

O-RING NSS

20

6647686

SEAL KIT Ref. 17-19
