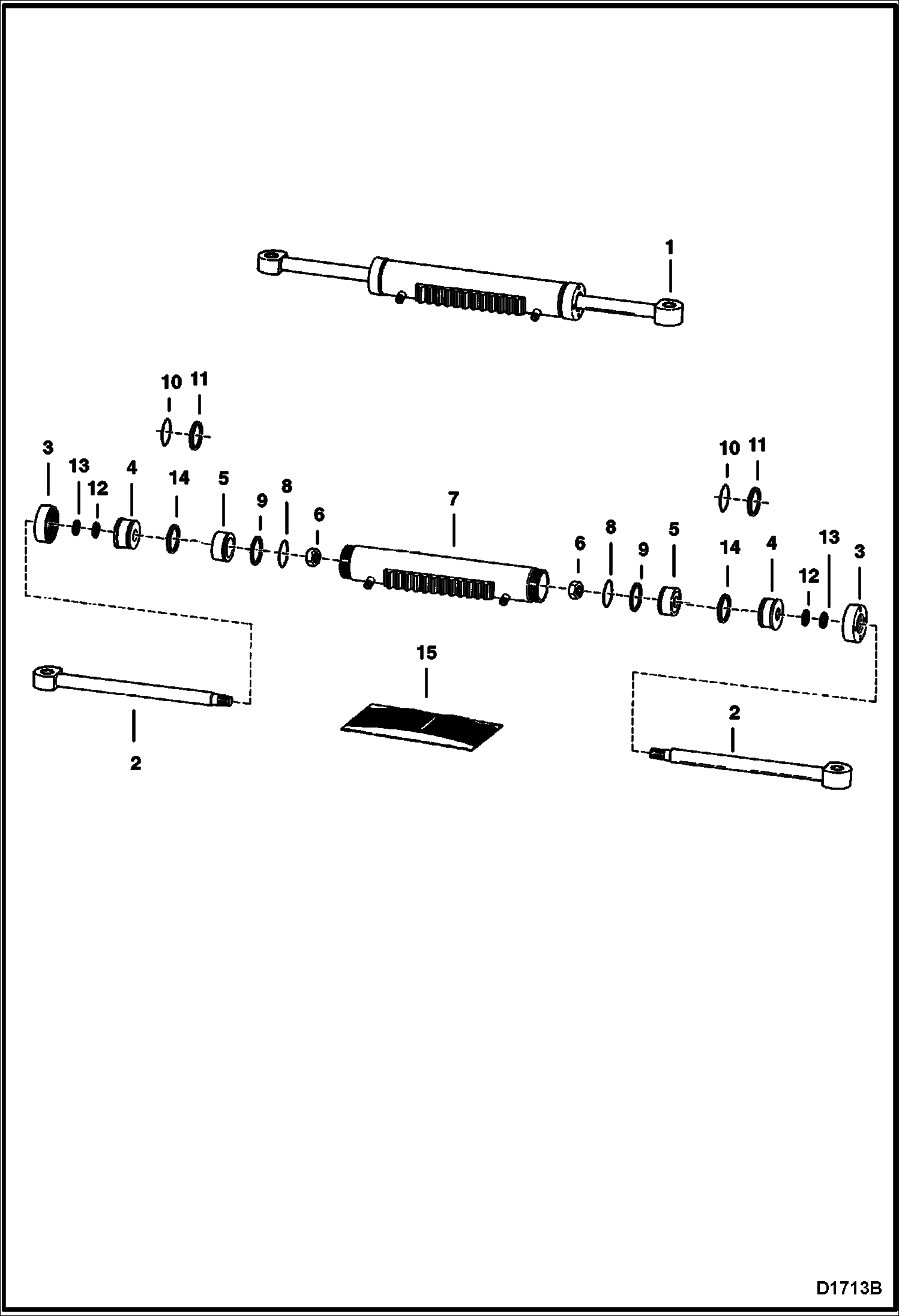

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (911B) (914B) 911B/914B BACKHOE

1

CYLINDER NLA - Ref. 2-13 - Was 6530807 - A

2

6593164

ROD

3

6530810

CAP

4

6593167

HEAD

5

6593168

PISTON

6

6810539

NUT Was 6804592 - A

7

6530873

CASE

8

54K30316

O'RING Was 25K030316B - B

9

947023

RING Was NSS - D

10

O-RING NLA - Order Ref. 14 - Was 54K60320 - B

11

BK UP WSH NLA - back-up - Order Ref. 14 - Was 80K342 - B

12

6667326

SEAL Was 6538141 - B

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

7008351

SEAL, QUAD

15

7196446

KIT, SEAL Ref. 6, 8, 9 & 12-14 - Was 7135523 - A
