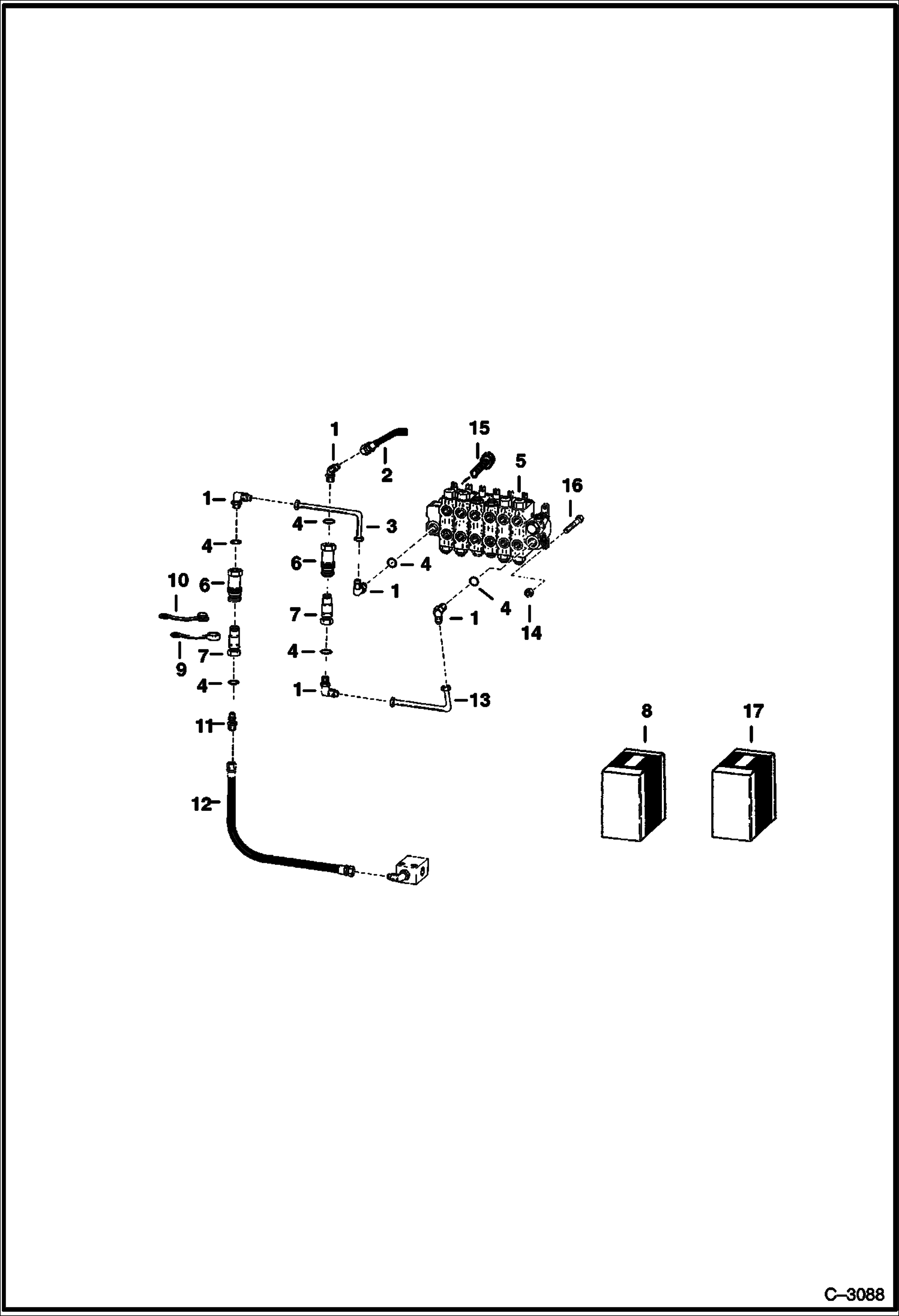

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Circuitry) (914B 058900101 - 11178) 911B/914B BACKHOE

1

17K8

FITTING W/Ref. 4

2

HOSE See Illustration BACKHOE/ C3118A NLA - 30'' (768 mm) long - Order Ref. 2 - Was 6649474 - A

3

TUBE See Illustration BACKHOE/ C3118A NLA - Order Ref. 3 & 15 - Was 6584690 - A

4

79K12

O RING 10

5

6646843

VALVE See Illustration BACKHOE/ B20581A See Illustration BACKHOE/ B20593

6

6641359

COUPLER female - bruning

7

6641358

COUPLER male - bruning

8

6648561

SEAL KIT for bruning coupler

9

6645231

DUST COVER

10

6645232

DUST COVER

11

15K8

FITTING W/Ref. 4

12

6584688

HOSE 18'' (457 mm) long

13

6584691

TUBE

14

85D5

NUT 5 Was 61D000005B

15

17C540

BOLT

16

6531750

BOLT carriage

17

6533012

KIT See Illustration BACKHOE/ B20590 hose length modification
