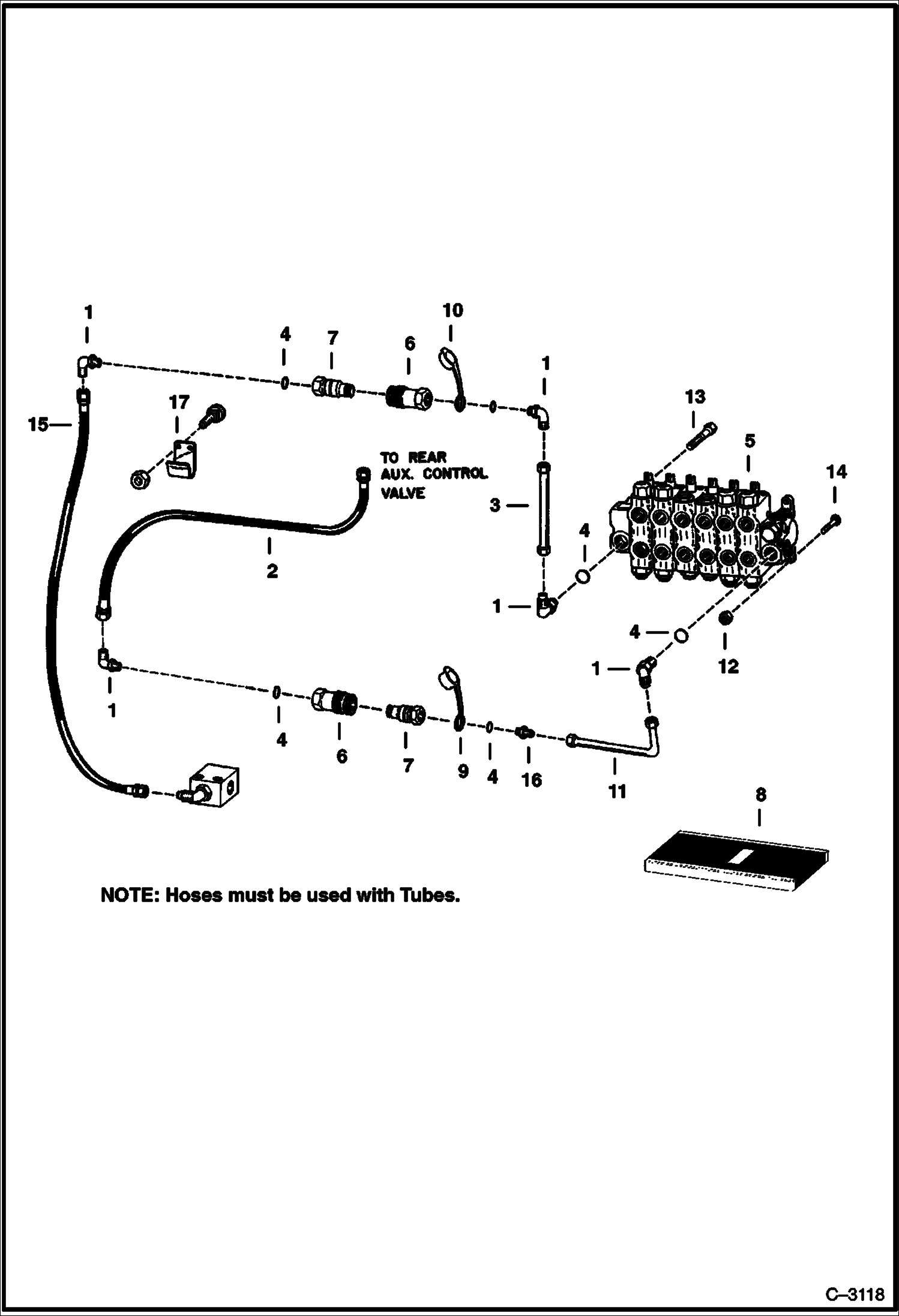

Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Circuitry) (911B) 911B/914B BACKHOE

1

17K8

FITTING W/Ref. 4

2

6650511

HOSE 50'' (1270 mm) long

3

6532131

TUBE

4

79K12

O RING 10

5

6646843

VALVE

6

6641359

COUPLER female - bruning

7

6641358

COUPLER male - bruning

8

6648561

SEAL KIT for bruning coupler

9

6645231

DUST COVER

10

6645232

DUST COVER

11

6532130

TUBE

12

85D5

NUT 5 Was 61D000005B - B

13

17C544

BOLT

14

6531750

BOLT carriage

15

6532128

HOSE ASSY. 33-1/2'' (850 mm) long

16

15K8

FITTING W/Ref. 4

17

6532216

BRACKET
