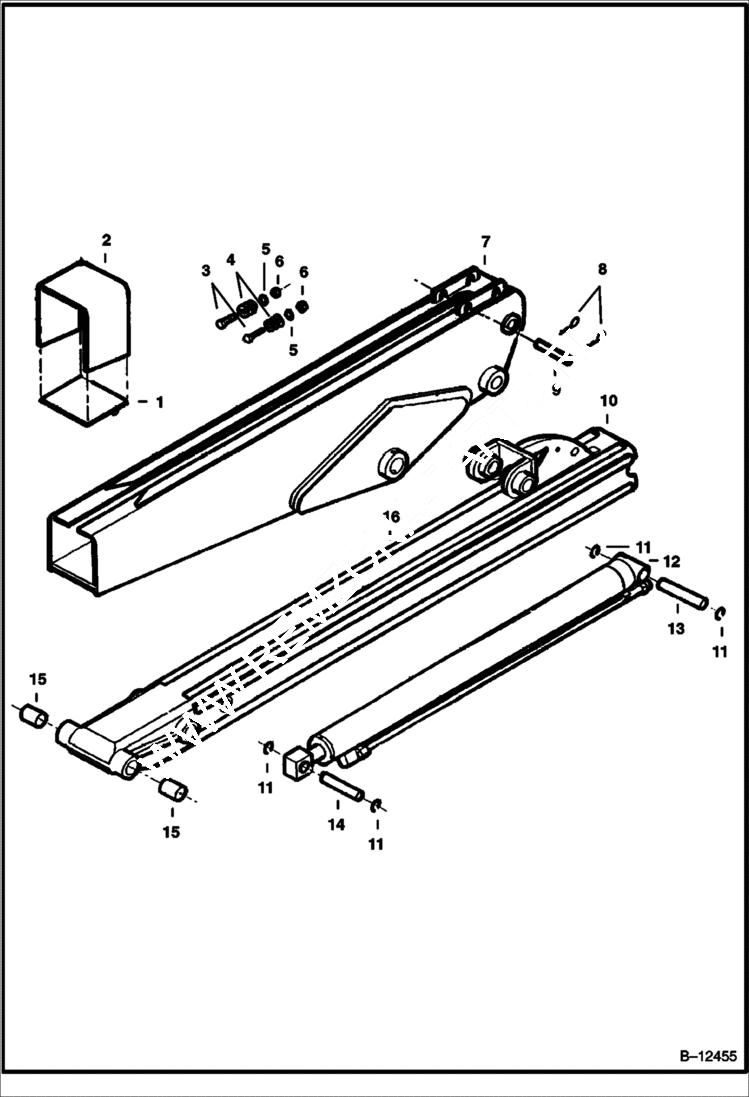

Запчасти Bobcat BACKHOE BACKHOE (Extendable Dipper) 913 BACKHOE

1

BRACKET NLA - Was 6649855 - A

2

6649856

BRACKET

3

17C848

BOLT

4

27E8

WASHER 10

5

61D8

NUT 5

6

23E8

WASHER

7

6649859

HOUSING

8

1318566

PIN

9

PIN NLA - Was 6649858 - A

10

6649862

EXTENSION

11

6643257

SNAP RING

12

6649865

CYLINDER See Illustration BACKHOE/ B12456

13

6649863

PIN

14

6649857

PIN

15

6649866

BUSHING

16

6649861

WEAR STRIPS weld on
