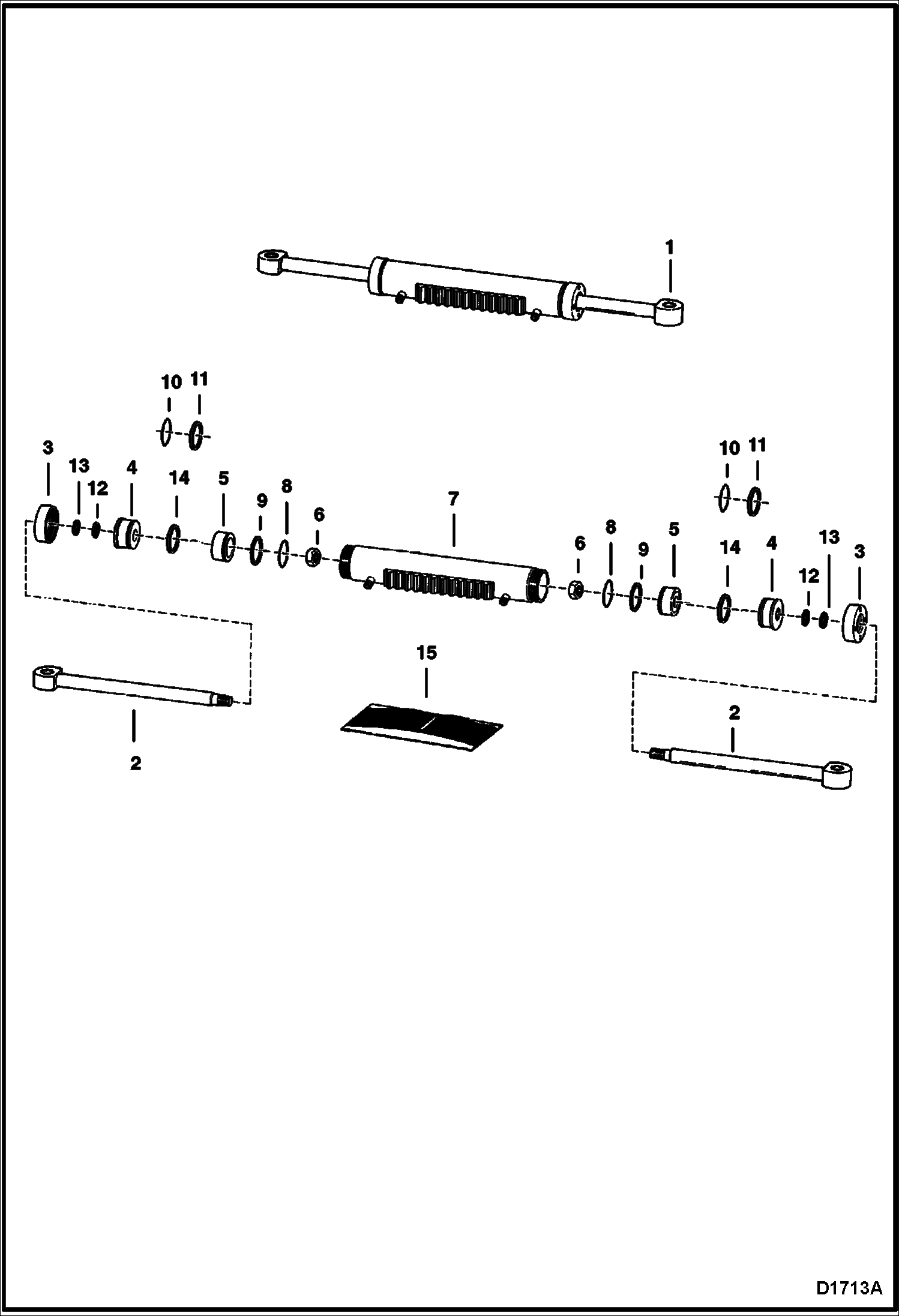

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (913) 913 BACKHOE

1

CYLINDER NLA - W/Ref. 2-13 - date code 326 & below - Order 6530807 - Was 6593159 - A

1

CYLINDER NLA - Ref. 2-13 - date code 447 & above - Order 6530807 - Was 6530807 - A

2

6593164

ROD

3

6593169

CAP for cyl. W/date code 326 & below

3

6530810

CAP for cyl. W/date code 441 & above

4

6593167

HEAD

5

6593168

PISTON

6

6810539

NUT Was 6804592 - A

7

CASE NLA - for cyl. W/date code 326 & below - Order 6530873 & 2 caps 6530810 - Was 6593170 - A

7

6530873

CASE for cyl. W/date code 441 & above

8

25K30316

O RING 10 Was 54K30316 - B

9

947023

RING

10

O RING 10 NLA - Order Ref. 14 - Was 54K60320 - B

11

RING NLA - back-up - Order Ref. 14 - Was 73K342 - B

12

6667326

SEAL Was 6538141 - A

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

7008351

SEAL, QUAD

15

7196446

KIT, SEAL Ref. 6, 8, 9 & 12-14 - Was 7135523 - A
