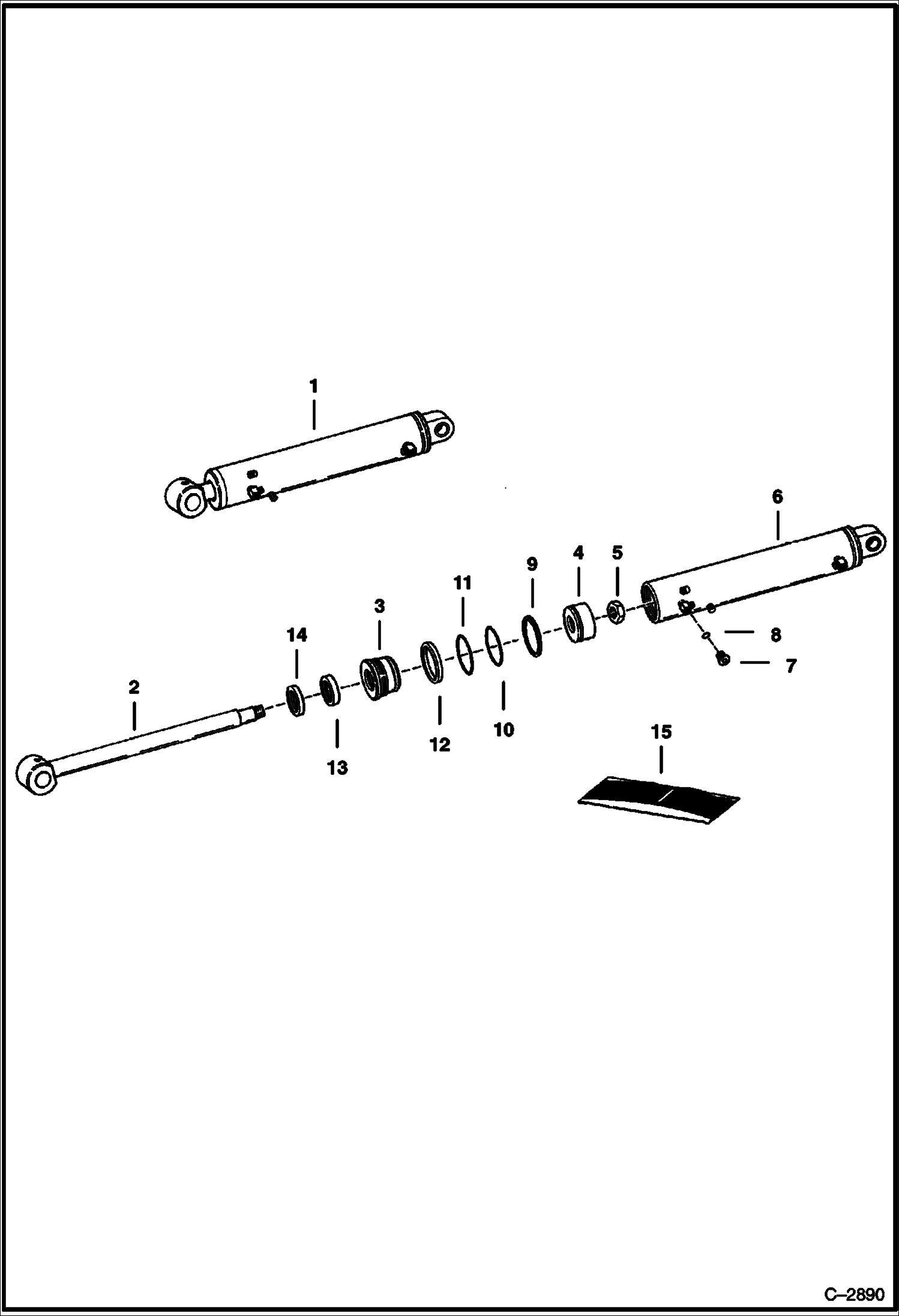

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (3.00 Bore) (913) 913 BACKHOE

1

CYLINDER NLA - W/Ref. 2-14 - Order 6594326 - Was 6593248 - A

2

6593250

ROD

3

6588912

HEAD Was 6531649 - A

4

6593254

PISTON

5

6810539

NUT Was 6804592 - A

6

CASE NLA - Order 6594326 - Was 6593257 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

6592081

SEAL

10

25K30218

O RING 10 Was 54K30218 - B

11

25K40224

O RING 10 Was 54K40224 - B

12

73K232

RING, BACK-UP back-up - Was NSS - D

13

6667326

SEAL u-cup - Was 6538141 - A

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

7135553

SEAL KIT Ref. 9-14 - Was 6804619 - A
