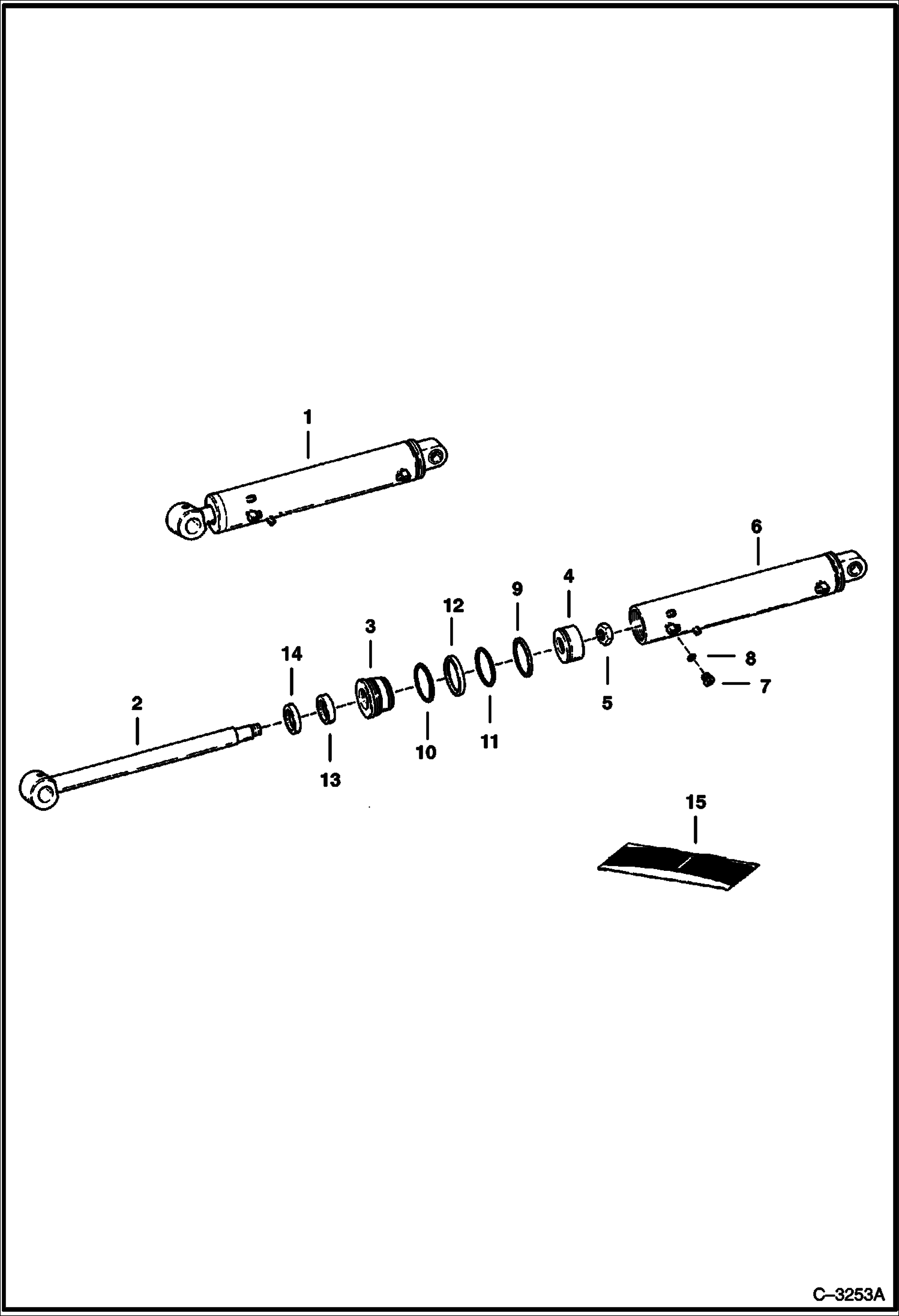

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (3.25 Bore) (913) 913 BACKHOE

1

6594326

CYLINDER W/Ref. 2-14

2

6594330

ROD

3

6529680

HEAD

4

6594333

PISTON

5

6810539

NUT Was 86D000018B - A

6

6594368

CASE

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

SEAL ASSY. NSS - Was 6648340 - A

10

82K236

O-RING Was 58K000236B - A

11

58K234

O RING 10 Was 54K40300 - B

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

6538141

SEAL u-cup

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

6661298

SEAL KIT W/Ref. 9-14 - Was 6594369 - A
