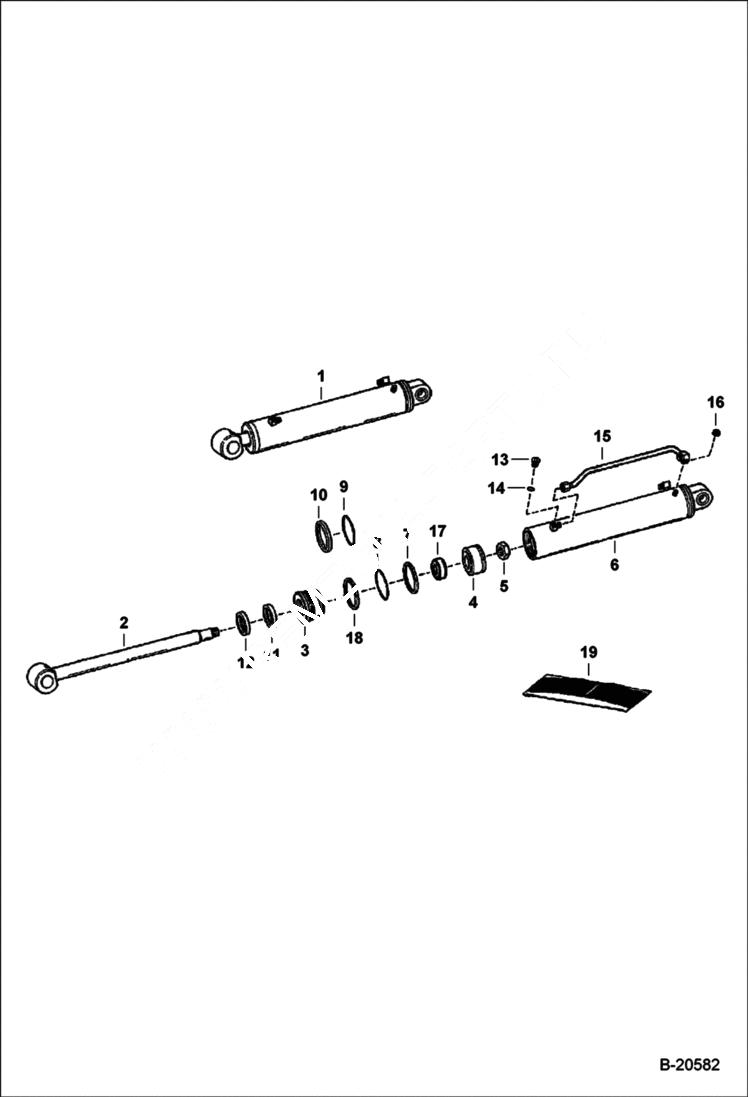

Запчасти Bobcat BACKHOE BACKHOE (Dipper Cylinder) (913) 913 BACKHOE

1

CYLINDER See Illustration BACKHOE/ B20584 - NLA - Ref. 2-17 - Order 6529696 - Was 6593275 - A

2

ROD See Illustration BACKHOE/ B20584 - NLA - Order 6529696 - Was 6593281 - A

3

6593285

HEAD

4

PISTON See Illustration BACKHOE/ B20584 - NLA - Order 6529696 - Was 6593286 - A

5

86D20

NUT

6

CASE See Illustration BACKHOE/ B20584 - NLA - Order 6529696 - Was 6593288 - A

7

6593381

SEAL

8

25K30308

O RING 10

9

58K340

O RING 10

10

73K340

BKUP RING back-up

11

6538277

SEAL

12

6686998

WIPER, ROD CYL Was 6666545 - A

13

47K5

PLUG W/Ref. 14 - flat boss face

13

90KV5

PLUG W/Ref. 14 - tapered boss face

14

79K6

O RING 10 for flat boss face

14

95K6

O'RING for tapered boss face

15

6593236

TUBE

16

57D5

NUT

17

6529595

SPACER

18

7008352

SEAL, QUAD

19

7196480

KIT, SEAL Ref. 7, 8, 11, 12 & 18 - Was 7137574 - A
