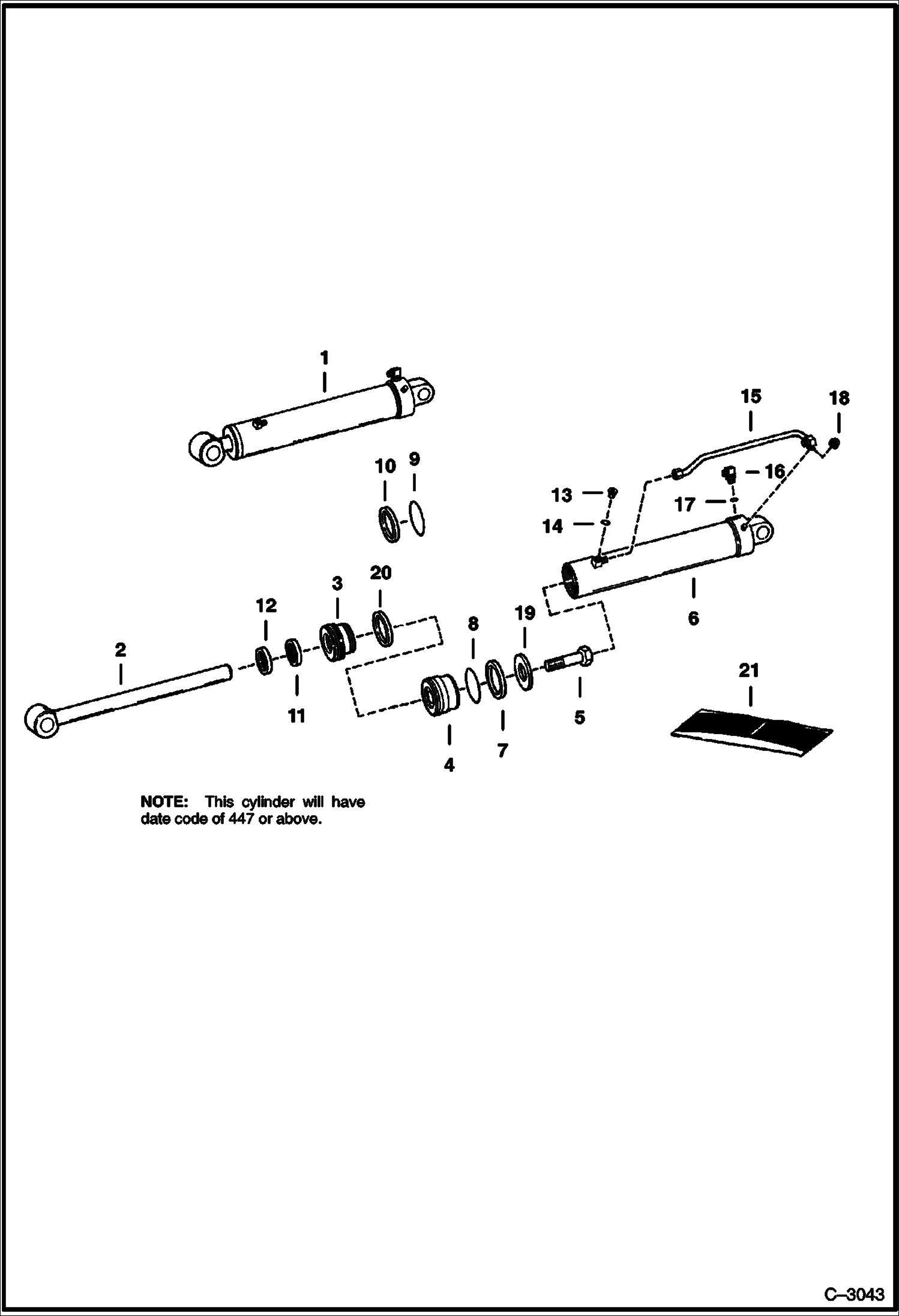

Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) (913) 913 BACKHOE

1

6529704

CYLINDER W/Ref. 2-19

2

6529698

ROD

3

6593105

HEAD

4

6529706

PISTON

5

18C2044

BOLT

6

6594122

CASE

7

947023

RING

8

25K30316

O RING 10

9

O RING 10 NLA - Order Ref. 20 - Was 25K60320 - B

10

RING NLA - back-up - Order Ref. 20 - Was 73K342 - B

11

6667328

SEAL Was 6538277 - A

12

6686998

WIPER, ROD CYL Was 6666545 - A

13

47K5

PLUG W/Ref. 14 - flat boss face

13

90KV5

PLUG W/Ref. 14 - tapered boss face

14

79K6

O RING 10 for flat boss face

14

95K6

O'RING for tapered boss face

15

6594193

TUBE

16

17K7

ELBOW

17

79K10

O RING 10

18

57D5

NUT

19

28E20

WASHER Was 6530740 - A

20

7008351

SEAL, QUAD

21

7196400

KIT, SEAL Ref. 7, 8, 11, 12 & 20 - Was 6589183 - A
