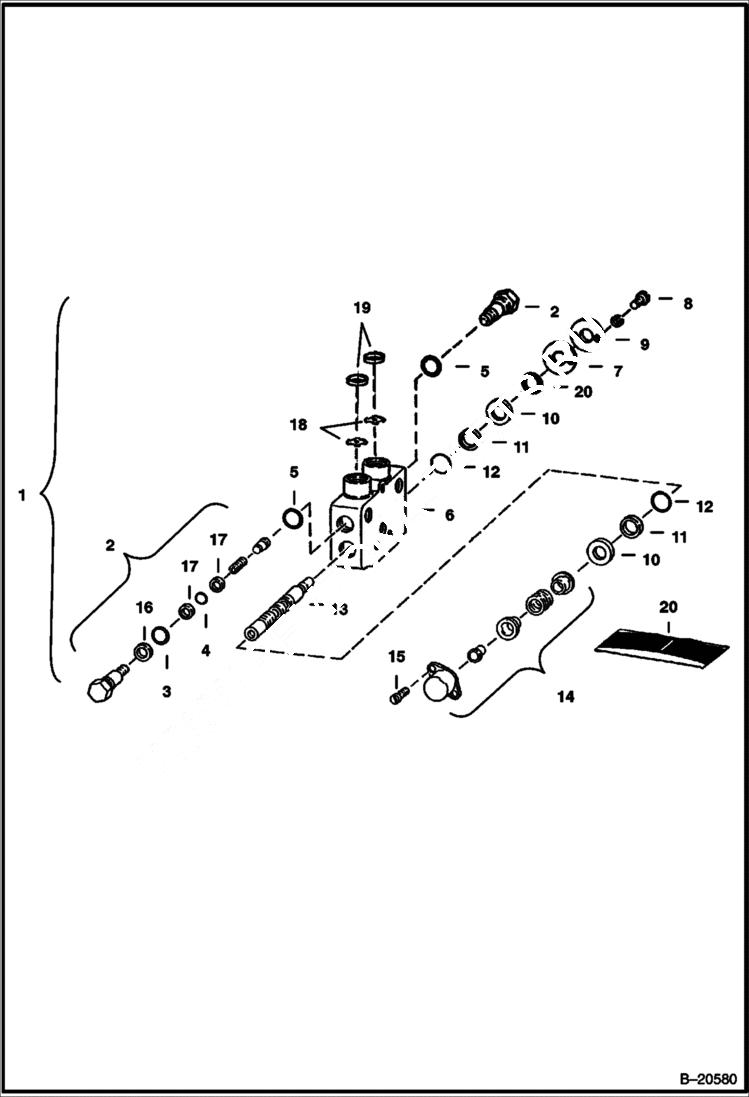

Запчасти Bobcat BACKHOE BACKHOE (Swing Section) (Gresen) (913 370001136 & Above) 913 BACKHOE

1

6650126

SECTION swing - W/Ref. 2-19 - Was 6649831 - D

2

6647696

VALVE

3

O-RING NSS - Order Ref. 20

4

O-RING NSS - Order Ref. 20

5

O-RING NSS - Order Ref. 20

6

BODY NSS - Order Ref. 20

7

6647688

PLATE plate washer

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER plate washer

11

WASHER NSS - back-up - Order Ref. 20

12

O-RING NSS - Order Ref. 20

13

SPOOL NSS - Order Ref. 20

14

6649832

BONNET

15

6647692

SCREW

16

WASHER NSS - back-up - Order Ref. 20

17

WASHER NSS - back-up - Order Ref. 20

18

6598689

ORIFICE 0.125

19

6647695

WIPER

20

6647693

SEAL KIT W/Ref. 3-5, 16 & 17

20

6647694

SEAL KIT W/Ref. 11 & 12
