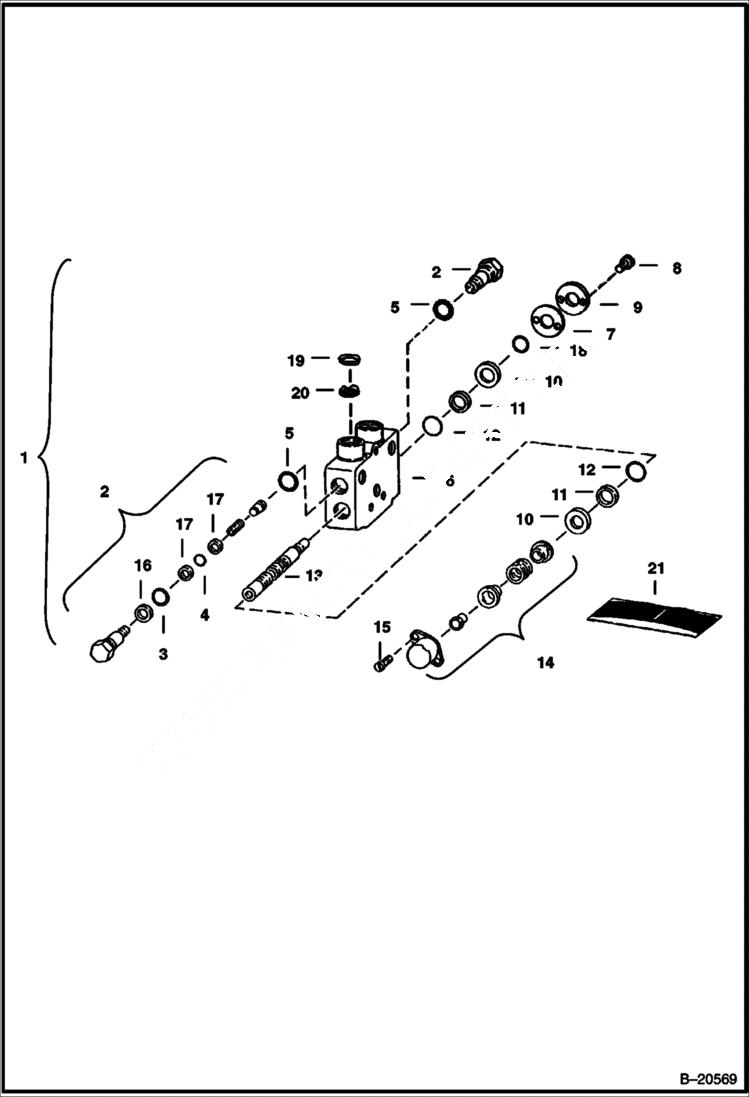

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Section) (Gresen) (913 370001136 & Above) 913 BACKHOE

1

SECTION NLA - stabilizer - W/Ref. 2-18 - Was 6649831 - A

2

6647713

PLUG

3

O-RING NSS - Order Ref. 21

4

O-RING NSS - Order Ref. 21

5

O-RING NSS - Order Ref. 21

6

BODY NSS - Order Ref. 21

7

6647688

PLATE plate washer

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER plate washer

11

WASHER NSS - back-up - Order Ref. 21

12

O-RING NSS - Order Ref. 21

13

SPOOL NSS - Order Ref. 21

14

6649832

BONNET

15

6647692

SCREW

16

WASHER NSS - back-up - Order Ref. 21

17

WASHER NSS - back-up - Order Ref. 21

18

6647695

WIPER

19

6598690

SPRING

20

6598689

ORIFICE 0.125

21

6647719

SEAL KIT W/Ref. 3-5, 16 & 17

21

6647694

SEAL KIT W/Ref. 11 & 12
