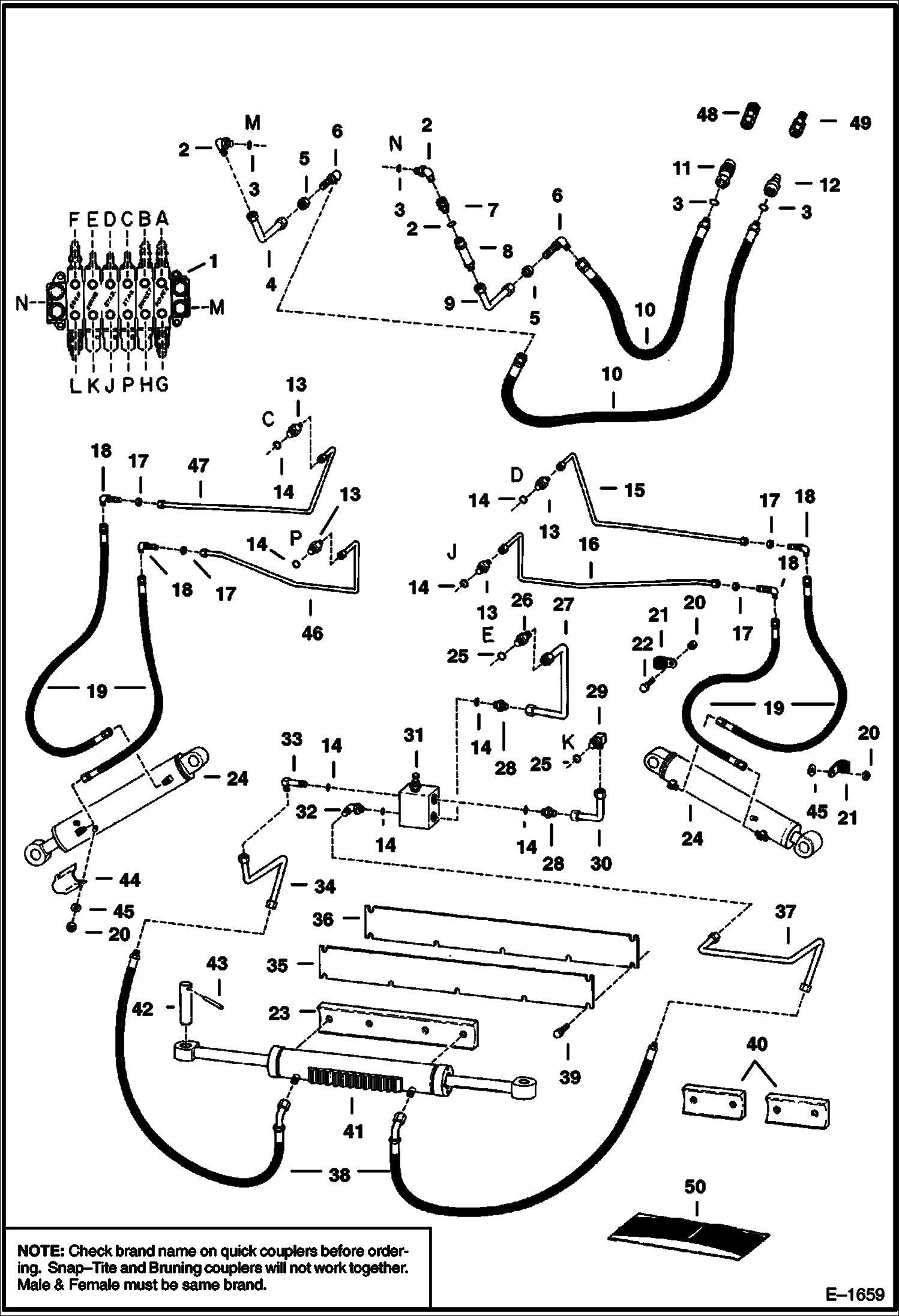

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulic With Husco Valve) (913 370000101 - 01110) 913 BACKHOE

1

VALVE See Illustration BACKHOE/ E1664

2

17K8

FITTING W/Ref. 3

3

79K12

O RING 10

4

6593796

TUBE

5

86F8

NUT 5

6

88F8

FITTING

7

2505198

ADAPTER

8

6631037

VALVE check

9

6593797

TUBE

10

6593798

HOSE

11

QUIK COUPLER NLA - female snap-tite - SEE NOTE - Was 6631574 - A

11

U-PACKING NLA - Was 6632280 - A

12

QUIK COUPLER NLA - male snap-tite - SEE NOTE - Was 6631573 - A

13

731795

CONNECTR

14

79K8

O RING 10

15

6593783

TUBE

16

6593782

TUBE

17

86F5

NUT

18

88F5

ELBOW

19

6530775

HOSE Was 6593915 - A

20

81D6

NUT

21

30H35

CLAMP 10

22

17C614

BOLT

23

6593965

WEAR BAR wear

24

CYLINDER See Illustration BACKHOE/ C2890 See Illustration BACKHOE/ C3253A stabilizer

25

79K10

O RING 10

26

731794

CONNECTR W/Ref. 25

27

6593785

TUBE

28

15K6

ADAPTER W/Ref. 14

29

784568

ELBOW W/Ref. 14

30

6593784

TUBE

31

6593803

RELIEF VALVE

31

6659574

SEAL KIT

31

6659575

RELIEF VALVE

31

6659576

BLOCK

32

17K6

ELBOW W/Ref. 14

33

6812820

ELBOW Was 6511914 - A

34

6593789

TUBE

35

6593896

WEAR PLATE

36

6593890

SHIM

37

6593788

TUBE

38

6588169

HOSE Was 6593802 - A

39

84G3110

SCREW

40

BAR NLA - wear - Order Ref. 23

41

CYLINDER See Illustration BACKHOE/ D1713A swing

42

6560351

PIN

43

14J3740

PIN

44

6593914

BRACKET

45

25E17

WASHER 5

46

6593786

TUBE

47

6593787

TUBE

48

6641359

COUPLER female bruning - SEE NOTE

49

6641358

COUPLER male bruning - SEE NOTE

50

6648561

SEAL KIT for both bruning couplers
