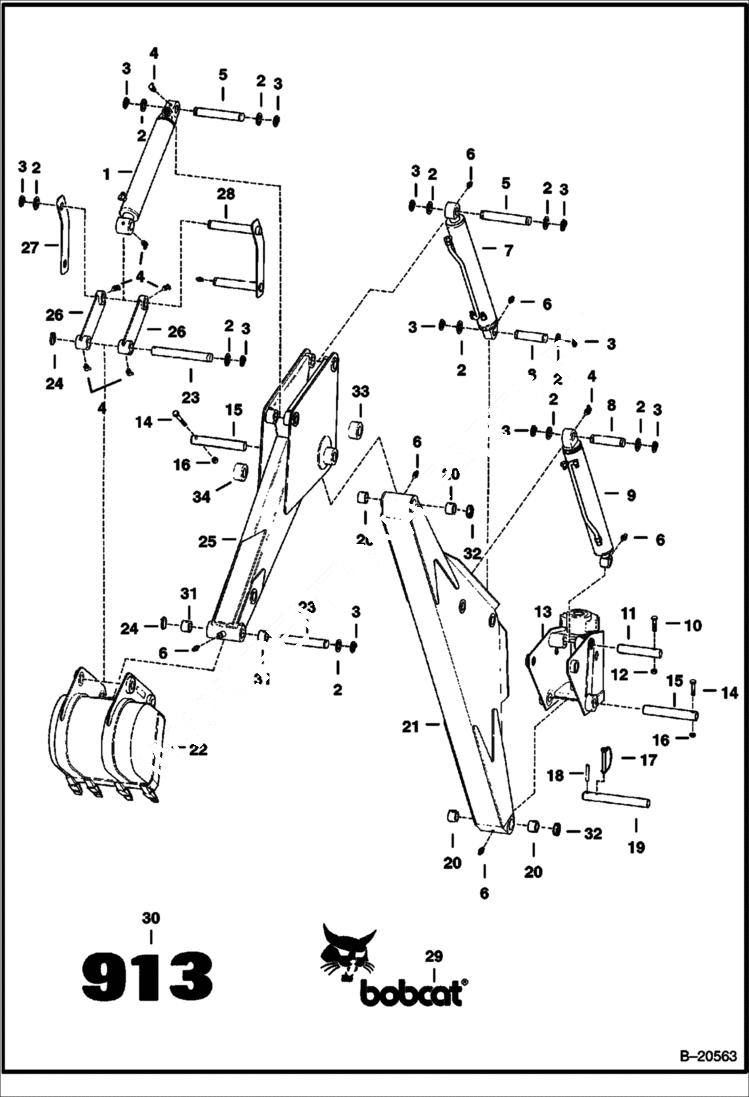

Запчасти Bobcat BACKHOE BACKHOE (Boom & Dipperstick) (913) 913 BACKHOE

1

CYLINDER See Illustration BACKHOE/ C2890 bucket

2

6584872

WASHER

3

22J24

RING SNAP Was 6538285 - B

4

12H15

FITTING, GREASE 5

5

6560352

PIN

6

10H25

FITTING, GREASE 5

7

CYLINDER See Illustration BACKHOE/ B20584 See Illustration BACKHOE/ B20582 dipper

8

6560350

PIN

9

CYLINDER See Illustration BACKHOE/ C3043 See Illustration BACKHOE/ C2891 boom

10

17C656

BOLT

11

6560351

PIN

12

81D6

NUT

13

FRAME See Illustration BACKHOE/ B20562 swing

14

17C864

BOLT Was 17C000860B - B

15

6531534

PIN Was 6593852 - A

16

85D8

NUT, 5

17

6510020

LOCK PIN

18

14J3740

PIN

19

6593895

PIN

20

1318541

RACE

21

6529781

BOOM Was 6593853 - A

22

BUCKET See Illustration BACKHOE/ B20586

23

6560401

PIN, PIVOT BUCKET

24

6560382

PIN, LOCK ring lock

25

6593828

DIPPER ARM

26

6593848

LINK

27

6593846

LINK

28

6593845

LINK W/pins

29

6808545

DECAL bobcat - R.H. - Was 6557412 - B

29

6808546

DECAL bobcat - L.H. - Was 6557413 - B

30

6593953

DECAL 913

31

6560334

BUSHING

32

6529588

WASHER hardened

33

6593843

BUSHING weld-on

34

6593842

BUSHING weld-on
