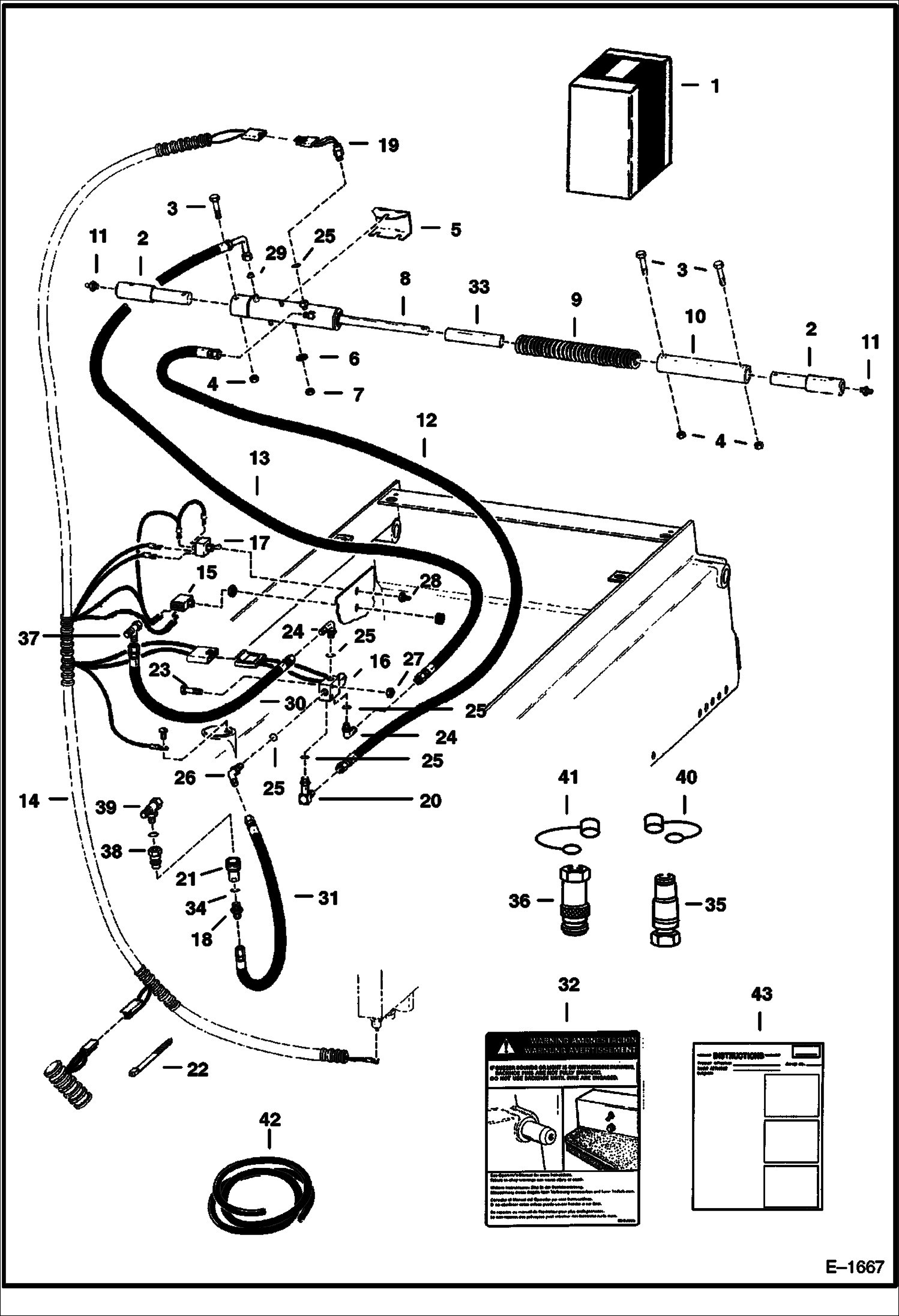

Запчасти Bobcat BACKHOE BACKHOE (Mounting Kit) (911C) 911C BACKHOE

1

KIT NLA - W/Ref. 2-43 - Was SALES #6593436 - A

2

6529861

PIN

3

17C644

BOLT

4

85D6

NUT, 5

5

6593826

BRACKET

6

25E16

WSHR

7

91D5

NUT 5 Was 81D000005B - A

8

CYLINDER See Illustration BACKHOE/ C2895

9

6593811

SPRING

10

6593812

COUPLER

11

10H25

FITTING, GREASE 5

12

6593816

HOSE

13

6530903

HOSE Was 6593818 - A

14

6593823

HARNESS

15

6631570

INDICATOR light & buzzer

16

6593951

SOLENOID

17

6631607

SWITCH toggle

18

743108

FITTING W/Ref. 34

19

6568962

SWITCH pressure

20

6558510

ELBOW W/Ref. 25

21

COUPLER NLA - female - Was 6630092 - A

22

6610510

TIE

23

17C432

BOLT

24

17K5

ELBOW W/Ref. 25

25

79K6

O RING 10

26

18K5

ELBOW W/Ref. 25

27

85D4

NUT 5

28

6515510

COVER

29

6593801

ORIFICE .062-.068

30

6593815

HOSE

31

6593817

HOSE

32

6593805

DECAL lock

33

SHIELD NLA - Order Ref. 42 - Was 6593269 - A

34

79K8

O RING 10

35

6641358

COUPLER male

36

6641359

COUPLER female

37

13K5

TEE 953 only

38

COUPLER NLA - male - 953 only - Was 6630093 - A

39

6577392

TEE 953 only

40

6645231

DUST COVER

41

6645232

DUST COVER

42

6632149

HOSE bulk - sold per foot

43

6570059

INSTRUCTIONS
