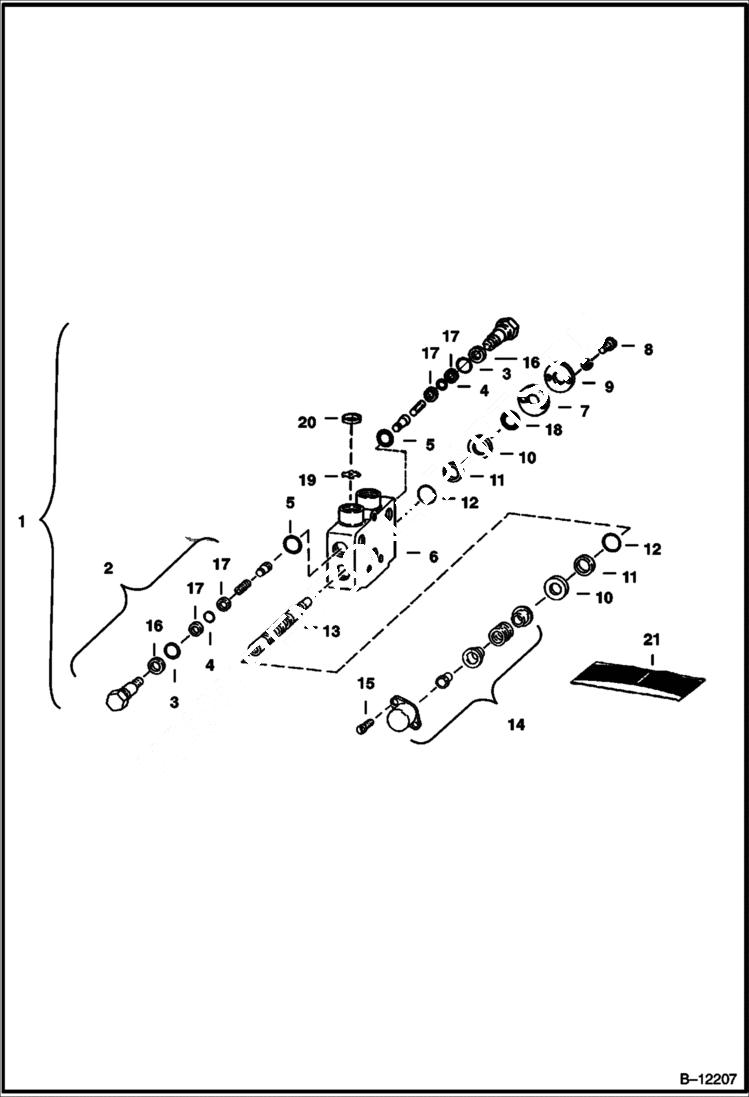

Запчасти Bobcat BACKHOE BACKHOE (Boom Section) (911C) 911C BACKHOE

1

6650127

SECTION boom - W/Ref. 2-20

2

6647696

VALVE relief

3

O-RING NSS - Order Ref. 21

4

O-RING NSS - Order Ref. 21

5

O-RING NSS - Order Ref. 21

6

BODY NSS - Order Ref. 21

7

6647688

PLATE plate washer

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER plate washer

11

WASHER NSS - back-up - Order Ref. 21

12

O-RING NSS - Order Ref. 21

13

SPOOL NSS - Order Ref. 21

14

6649832

BONNET

15

6647692

SCREW

16

WASHER NSS - back-up - Order Ref. 21

17

WASHER NSS - back-up - Order Ref. 21

18

6647695

WIPER

19

6598845

ORIFICE 0.189

20

6598690

SPRING

21

6647693

SEAL KIT W/Ref. 3-5, 16 & 17

21

6647694

SEAL KIT W/Ref. 11 & 12
