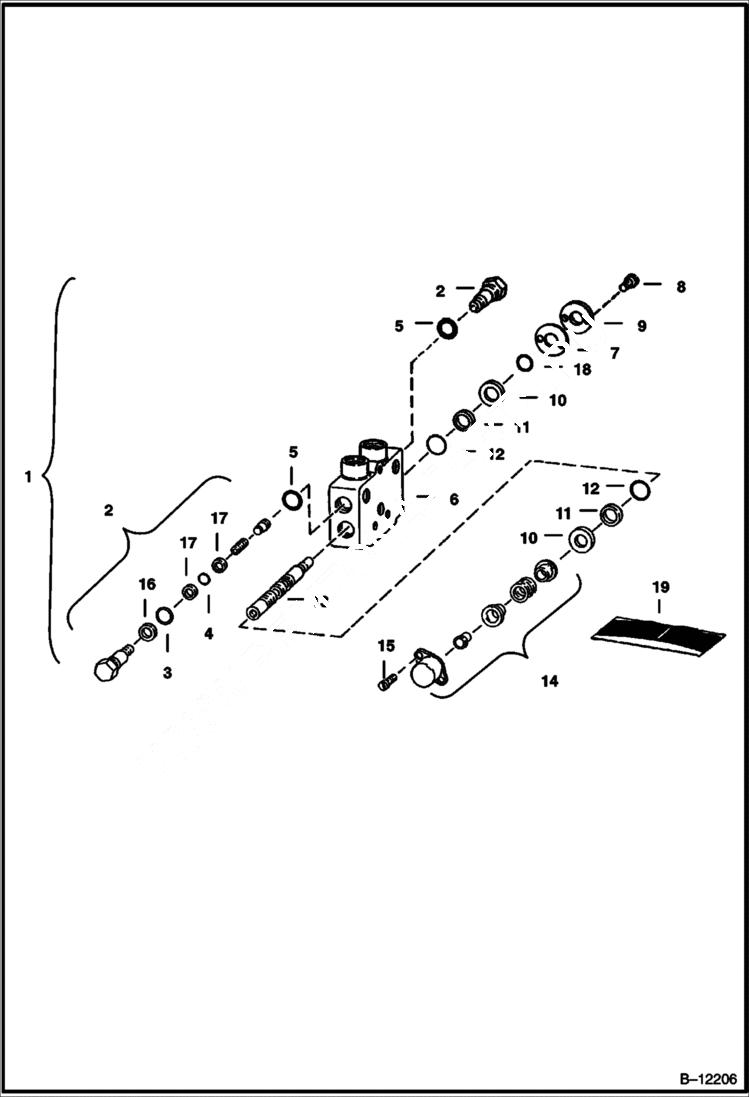

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Section) (911C) 911C BACKHOE

1

SECTION NLA - stabilizer - W/Ref. 2-18 - Was 6649831 - A

2

6647713

PLUG

3

O-RING NSS - Order Ref. 19

4

O-RING NSS - Order Ref. 19

5

O-RING NSS - Order Ref. 19

6

BODY NSS - Order Ref. 19

7

6647688

PLATE plate washer

8

6647689

SCREW

9

6519941

RETAINER

10

6647690

RETAINER plate washer

11

WASHER NSS - back-up - Order Ref. 19

12

O-RING NSS - Order Ref. 19

13

SPOOL NSS - Order Ref. 19

14

6649832

BONNET

15

6647692

SCREW

16

WASHER NSS - back-up - Order Ref. 19

17

WASHER NSS - back-up - Order Ref. 19

18

6647695

WIPER

19

6647719

SEAL KIT W/Ref. 3-5, 16 & 17

19

6647694

SEAL KIT W/Ref. 11 & 12
