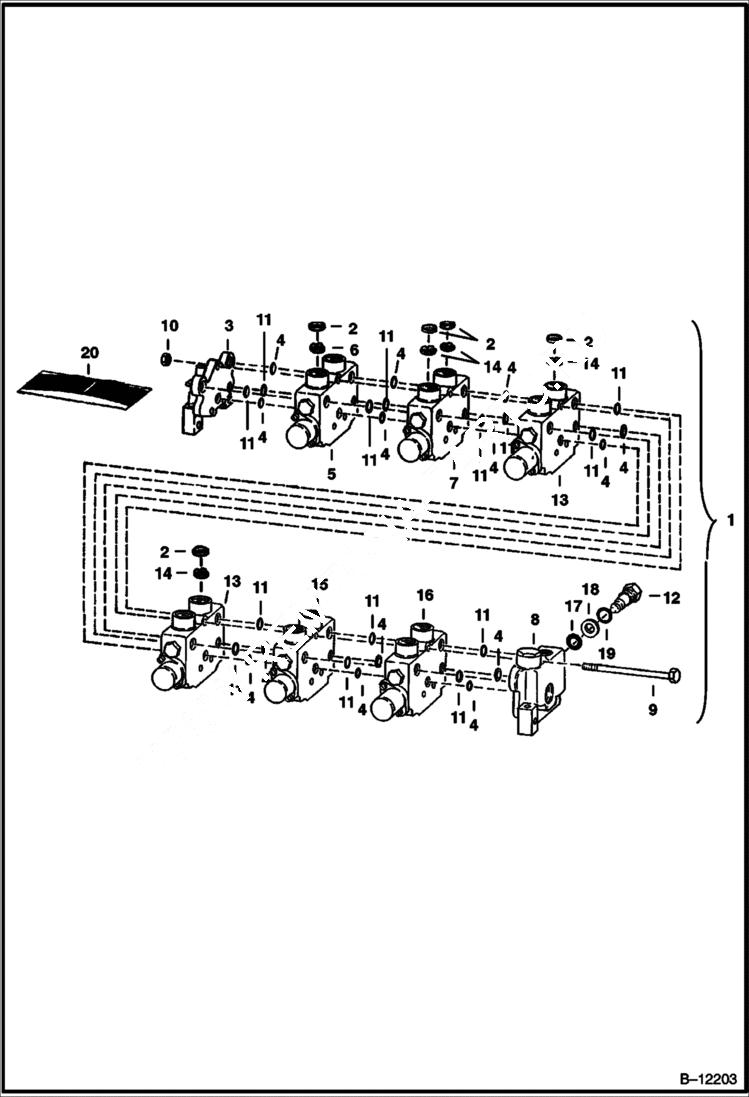

Запчасти Bobcat BACKHOE BACKHOE (Control Valve) (911C) 911C BACKHOE

1

6648763

VALVE W/Ref. 2-19

2

6598690

SPRING

3

6649827

VALVE COVER

4

O-RING NSS - Order Ref. 20 - Was 6647675 - B

5

6650127

SECTION See Illustration BACKHOE/ B12207 boom

6

6598845

ORIFICE 0.189

7

6650126

SECTION See Illustration BACKHOE/ B20904 swing

8

6649828

VALVE COVER

9

6649829

KIT bolts & nuts

10

NUT NSS - Order Ref. 9

11

O-RING NSS - Order Ref. 20 - Was 6647680 - B

12

6649830

MAIN RELIEF plug

13

SECTION See Illustration BACKHOE/ B12206 NLA - stabilizer - Was 6649831 - A

14

6598689

ORIFICE 0.125

15

6650125

SECTION See Illustration BACKHOE/ B20558 bucket

16

6650124

SECTION See Illustration BACKHOE/ B12211 dipper

17

O-RING NSS - Order Ref. 20

18

WASHER NSS - back-up - Order Ref. 20

19

O-RING NSS - Order Ref. 20

20

6647686

SEAL KIT W/Ref. 17-19

20

6660750

SEAL KIT W/Ref. 4 & 11
