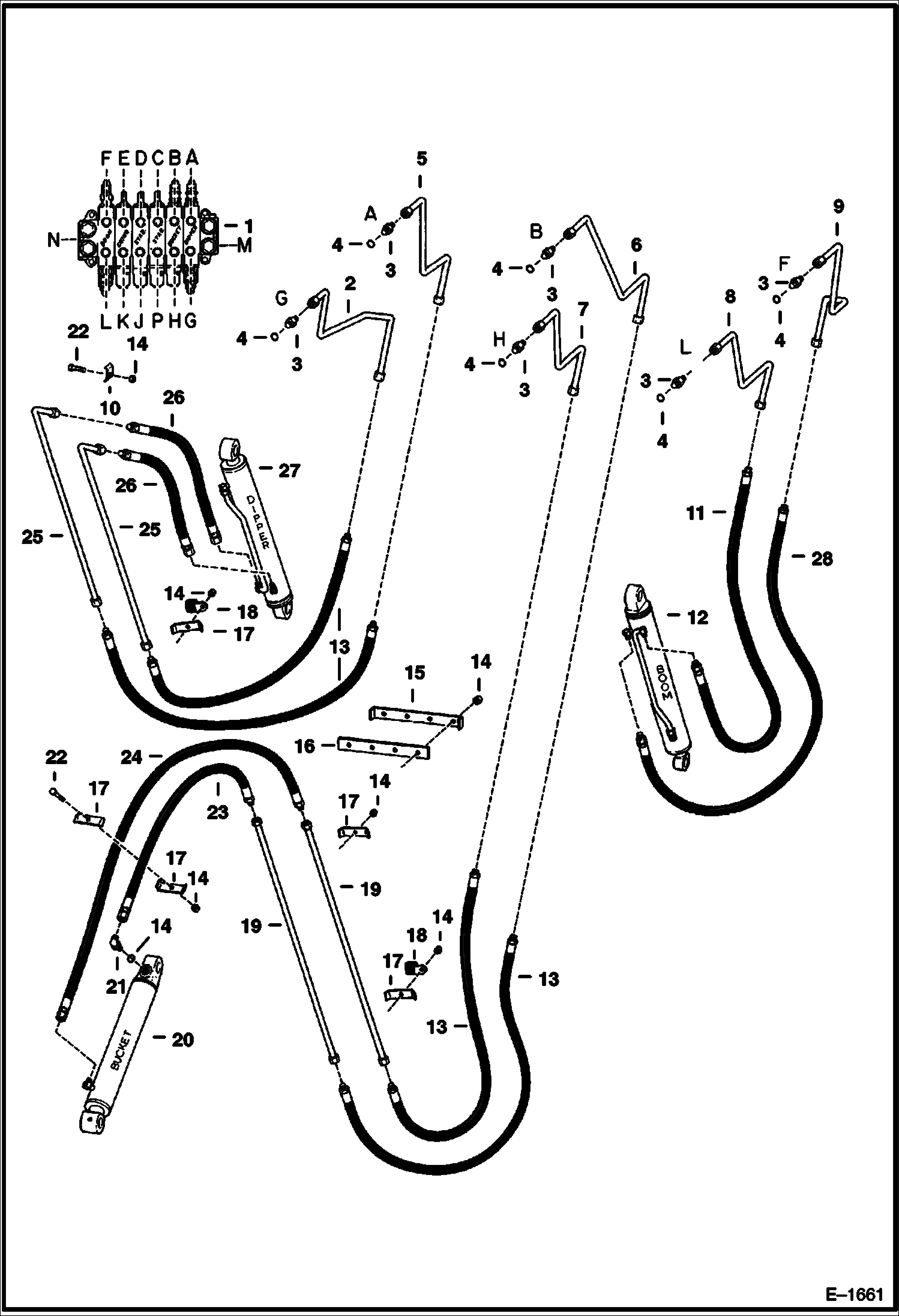

Запчасти Bobcat BACKHOE BACKHOE (Boom Hydraulic Circuitry) (911C) 911C BACKHOE

1

VALVE See Illustration BACKHOE/ B12203

2

6530956

TUBE

3

15K7

FITTING W/Ref. 4

4

79K10

O RING 10

5

6530957

TUBE

6

6530954

TUBE

7

6530955

TUBE

8

6530952

TUBE

9

6530953

TUBE

10

6562266

CLAMP

11

6588171

HOSE

12

CYLINDER See Illustration BACKHOE/ C3247D boom

13

6588170

HOSE

14

81D6

NUT

15

CLAMP NLA - Was 6593780 - A

16

6593781

SPACER

17

6502426

CLAMP

18

30H50

CLIP

19

6593871

TUBE

20

CYLINDER See Illustration BACKHOE/ B20472C bucket

21

17K7

ELBOW W/Ref. 4

22

17C632

BOLT 5

23

6588173

HOSE

24

6588174

HOSE

25

6593870

TUBE

26

742961

HOSE ASY

27

CYLINDER See Illustration BACKHOE/ B20559 dipper

28

6588172

HOSE
