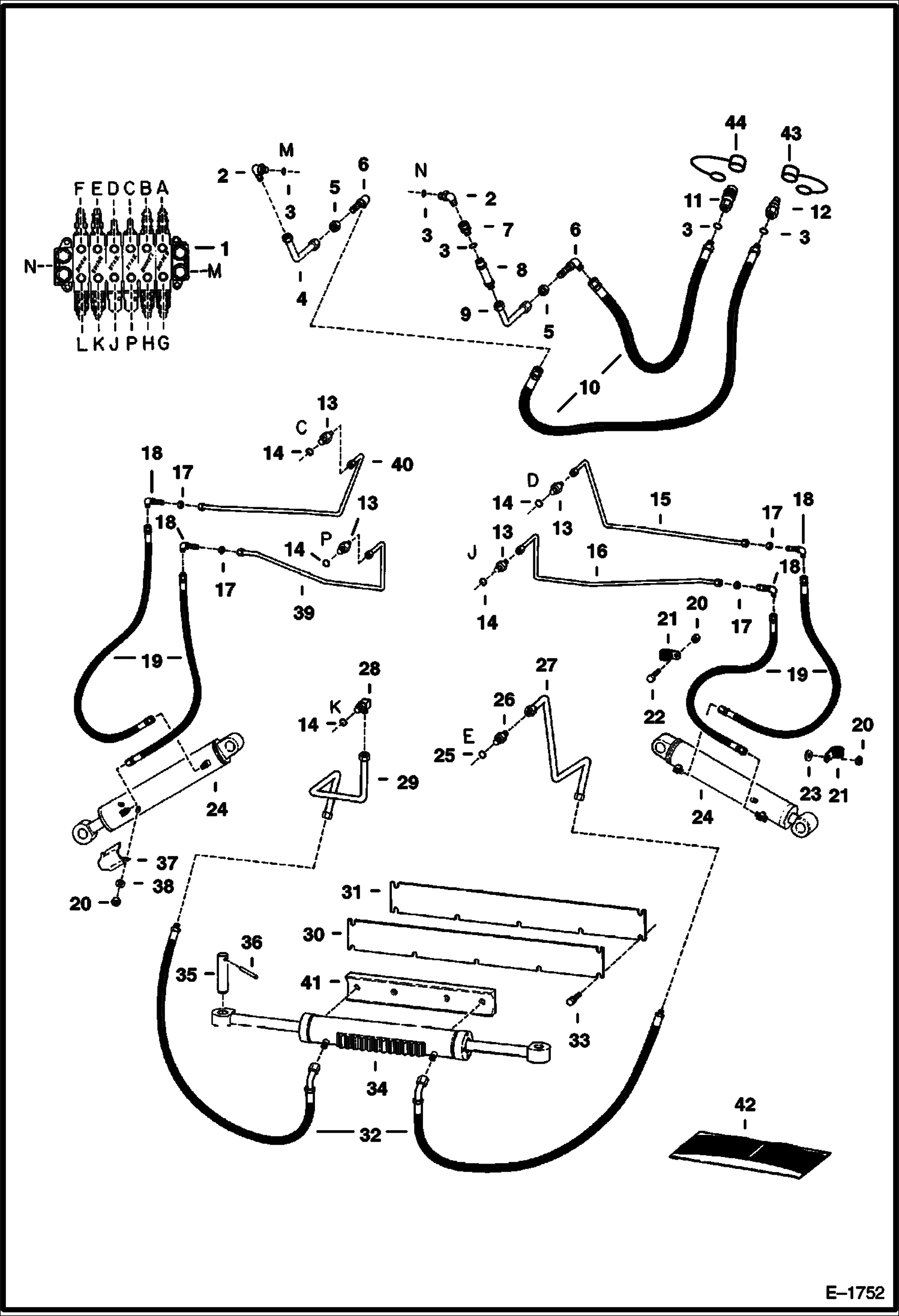

Запчасти Bobcat BACKHOE BACKHOE (Main Frame Hydraulics) (911C) 911C BACKHOE

1

VALVE See Illustration BACKHOE/ B12203

2

17K8

FITTING W/Ref. 3

3

79K12

O RING 10

4

6530958

TUBE

5

86F8

NUT 5

6

88F8

FITTING

7

2505198

ADAPTER

8

6647878

VALVE check

9

6530959

TUBE

10

6593798

HOSE

11

6641359

COUPLER female

12

6641358

COUPLER male

13

731795

CONNECTR W/Ref. 14

14

79K8

O RING 10

15

6530948

TUBE

16

6530949

TUBE

17

86F5

NUT

18

88F5

ELBOW

19

6530775

HOSE

20

81D6

NUT

21

30H35

CLAMP 10

22

17C614

BOLT

23

25E22

WASHER

24

CYLINDER See Illustration BACKHOE/ C3253 stabilizer

25

79K10

O RING 10

26

731794

CONNECTR W/Ref. 25

27

6530947

TUBE

28

784568

ELBOW W/Ref. 14

29

6530945

TUBE

30

6593896

WEAR PLATE

31

6593890

SHIM

32

6588169

HOSE

33

84G3110

SCREW

34

CYLINDER See Illustration BACKHOE/ D1713 swing

35

6560351

PIN

36

14J3740

PIN

37

6593914

BRACKET

38

25E17

WASHER 5

39

6530950

TUBE

40

6530951

TUBE

41

6593965

WEAR BAR wear

42

6648561

SEAL KIT for both Ref. 11 & 12

43

6645231

DUST COVER

44

6645232

DUST COVER
