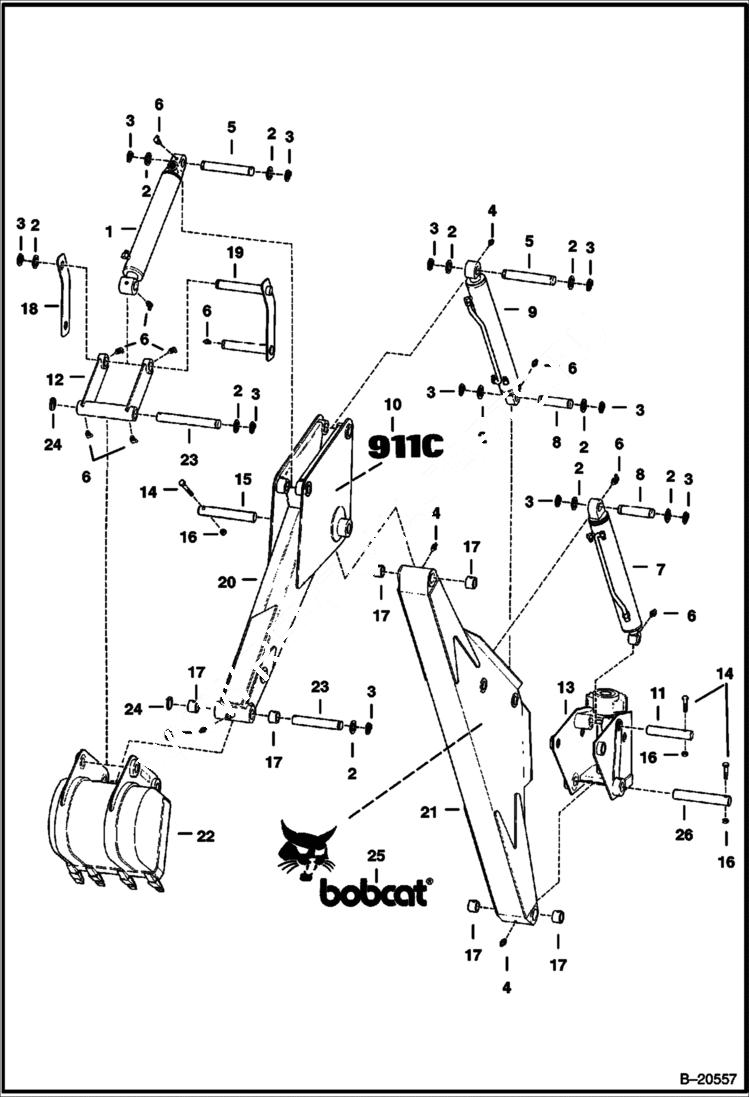

Запчасти Bobcat BACKHOE BACKHOE (Boom & Dipperstick) (911C) 911C BACKHOE

1

CYLINDER See Illustration BACKHOE/ NA2865 See Illustration BACKHOE/ B20472C bucket

2

6584872

WASHER

3

22J24

RING SNAP Was 6538285 - B

4

12H15

FITTING, GREASE 5

5

6560349

PIN

6

10H25

FITTING, GREASE 5

7

CYLINDER See Illustration BACKHOE/ PE2514B See Illustration BACKHOE/ C3247D boom

8

6560350

PIN

9

CYLINDER See Illustration BACKHOE/ PE2514C See Illustration BACKHOE/ B20559 dipper

10

6587954

DECAL 911C

11

6560351

PIN

12

6537182

LINK

13

FRAME See Illustration BACKHOE/ E1662 swing

14

17C648

BOLT 5

15

6533340

PIN

16

85D6

NUT, 5

17

6560334

BUSHING

18

6532530

LINK

19

6532528

LINK

20

6533346

DIPPERSTICK

21

6533283

BOOM

22

BUCKET See Illustration BACKHOE/ B20561

23

6560401

PIN, PIVOT BUCKET

24

6560382

PIN, LOCK ring lock - 1.625'' (41,3 mm) dia.

24

6631038

PIN ring lock - 1.875'' (47,6 mm) dia.

25

6808545

DECAL bobcat - R.H. - Was 6557412 - B

25

6808546

DECAL bobcat - L.H. - Was 6557413 - B

26

6588127

PIN
