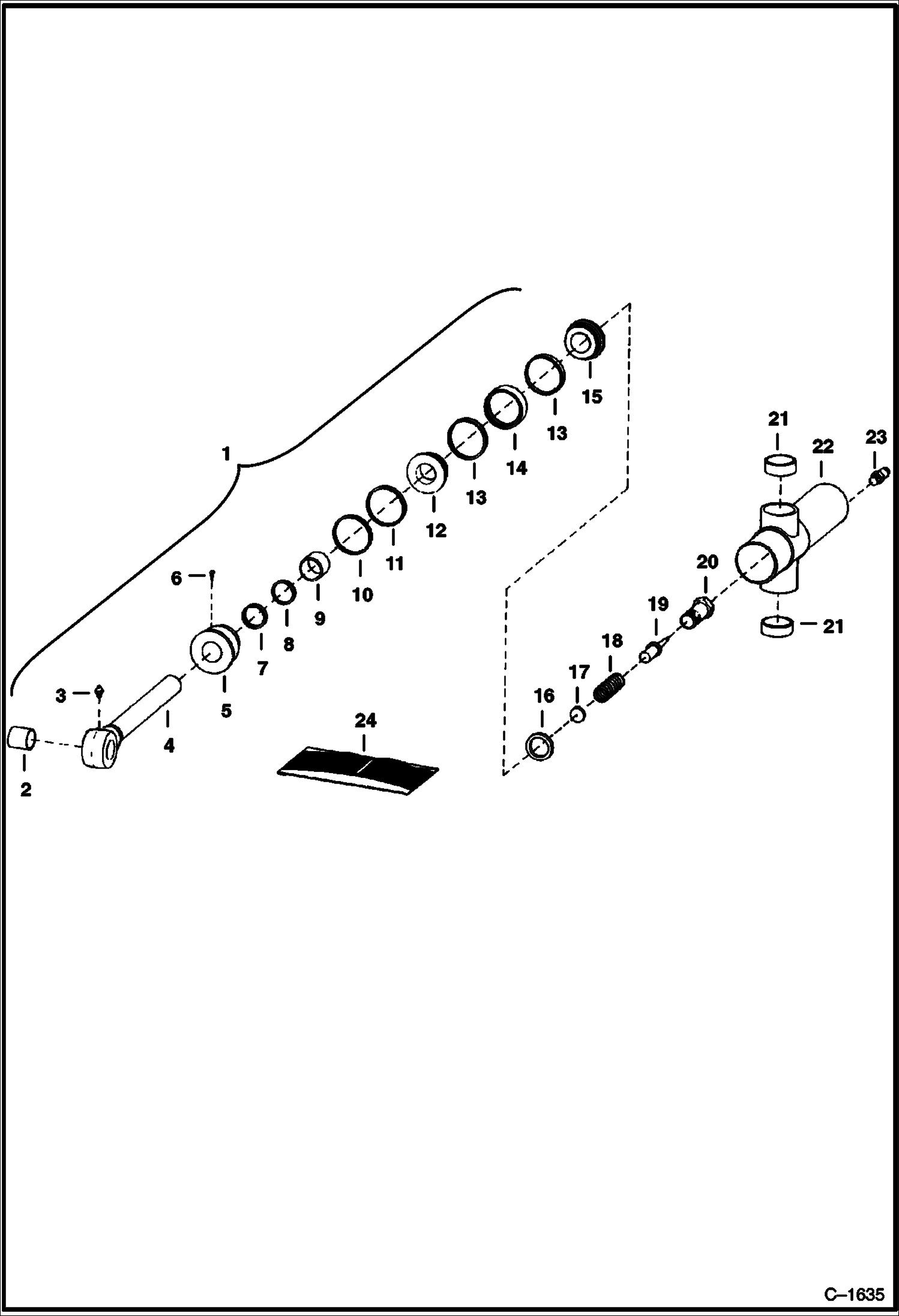

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (914A) 914/914A BACKHOE

1

CYLINDER NLA - Ref. 2-22 - Was 6519574 - A

2

6519583

BUSHING

3

10H25

FITTING, GREASE 5

4

6519576

ROD

5

6519581

HEAD cylinder

6

65G804

SCREW

7

SEAL NSS - wiper

8

SEAL NSS - wiper

9

SEAL NSS - wiper

10

RING NSS - back-up

11

O-RING NSS

12

PISTON NLA - cylinder - rod half - Was 6519577 - A

13

RING NSS - piston seal

14

6519423

RING wear - Was NSS - D

15

6519578

PISTON cylinder - retainer half

16

6519429

WASHER retainer

17

6519584

SPACER

18

6519427

SPRING

19

6519580

PIN cushion

20

6519579

RETAINER piston

21

6519582

BUSHING trunnion

22

6519575

TUBE swing cylinder - W/Ref. 21

23

6519846

RELIEF VALVE

24

6519428

SEAL KIT Ref. 7-11, 13 & 14
