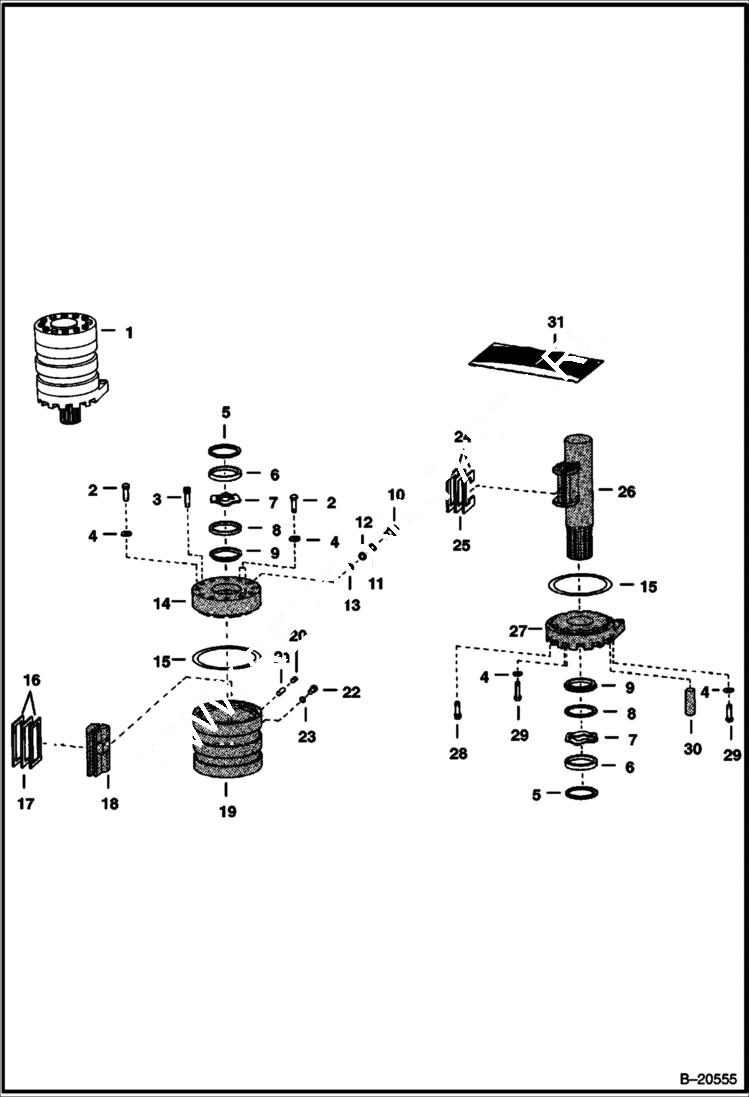

Запчасти Bobcat BACKHOE BACKHOE (Swing Cylinder) (914) 914/914A BACKHOE

1

6515826

CYLINDER swing

2

17C852

BOLT 5

3

SCREW NLA - Was 73G001052B - A

4

6515811

WASHER

5

WASHER NLA - Was 6515808 - A

6

6515882

SEAL

7

WASHER NLA - wave - Was 6515816 - A

8

RING NLA - retaining - Was 1318936B - A

9

SEAL NLA - wedge - Was 6515881 - A

10

6515842

VALVE relief - W/Ref. 11

11

25K30028

O RING 10

12

WASHER NLA - back-up - Was 80K000118B - A

13

25K30030

O RING 10

14

END PLATE NSS - top - Was 6515880 - A

15

25K40808

O RING 10

16

WASHER NLA - back-up - Was 6515810 - A

17

SEAL NLA - Was 6515884 - A

18

VANE NSS - stationary

19

6515840

BARREL ASSY.

20

16F4

PLUG

21

1318916

PIN dowel

22

73G832

BOLT Was 11G-832 - A

23

WASHER NSS - dyna-seal - Was 6515814 - A

24

WASHER NLA - back-up - Was 6515809 - A

25

SEAL NLA - Was 6515883 - A

26

SHAFT NLA - Was 6515841 - A

27

6515879

END PLATE bottom

28

73G1044

SCREW

29

17C844

BOLT

30

6515815

PIN dowel

31

SEAL KIT NLA - Ref. 5-9, 15-17, 23-25 - Was 6505836 - A
