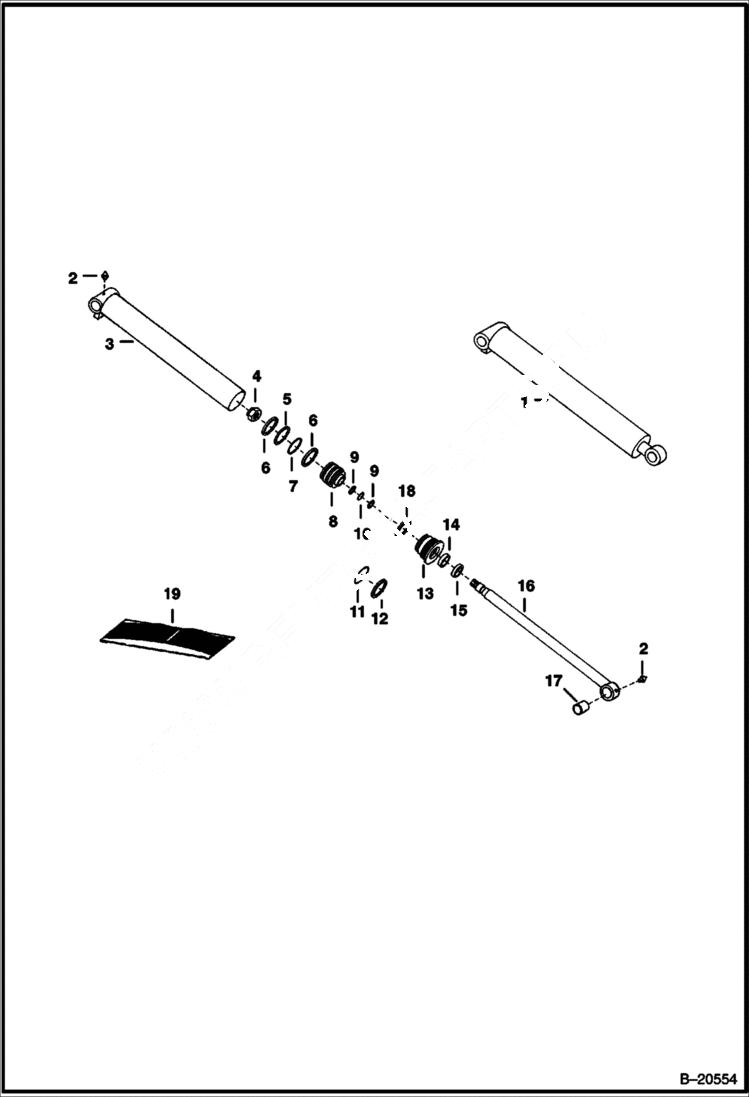

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (914) (914A) 914/914A BACKHOE

1

6508540

CYLINDER stabilizer - Ref. 2-17

2

10H25

FITTING, GREASE 5

3

CASE NLA

4

92D24

NUT Was 8D24 - B

5

1530265

PISTON SEAL piston seal

6

6518611

RING wear

7

25K30300

O RING 10

8

6508836

PISTON

9

6518608

RING piston seal

10

58K125

O RING 10 Was 6518606 - A

11

O RING 10 NLA - Order Ref. 18 - Was 58K338 - B

12

RING NLA - back-up - Order Ref. 18 - Was 73K338 - B

13

6508835

HEAD

14

6538277

SEAL wiper

15

6686998

WIPER, ROD CYL Was 1657090B - A

16

6508847

ROD

17

6509299

BUSHING

18

7008353

SEAL, QUAD

19

7196892

KIT, SEAL Ref. 4-7, 9, 10, 14, 15 & 18 - Was 7137573 - A
