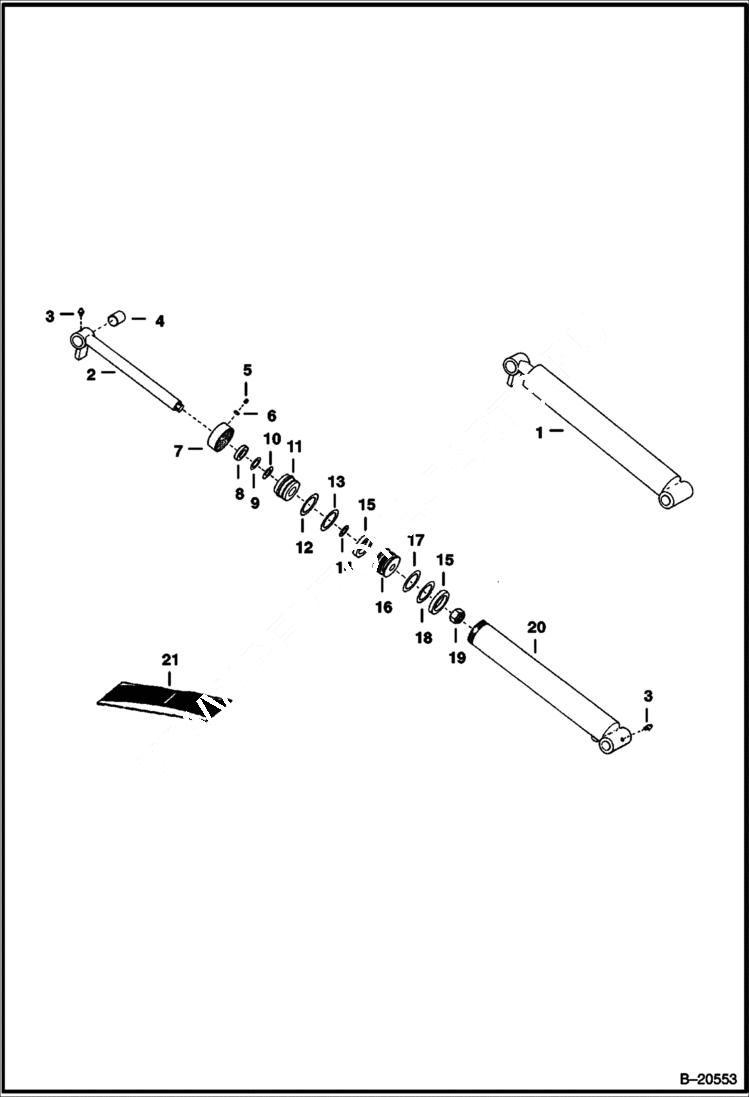

Запчасти Bobcat BACKHOE BACKHOE (Stabilizer Cylinder) (914 - Old Style) 914/914A BACKHOE

1

6515822

CYLINDER Ref. 2-20

2

6515857

ROD

3

10H25

FITTING, GREASE 5

4

947533

BUSHING

5

15G408

SCREW

6

7D4

NUT

7

948330

FLANGE Was 947655 - A

8

SEAL NSS - wiper

9

WASHER NSS - back-up

10

O-RING NSS

11

6515878

HEAD

12

WASHER NSS - back-up

13

O-RING NSS

14

O-RING NLA - Was 58K000226B - A

15

RING NSS - wear - Was 947644 - A

16

947534

PISTON

17

O-RING NSS

18

RING NSS - piston seal

19

NUT NLA - Was 60D000020B - A

20

CASE NLA

21

6515861

SEAL KIT Ref. 8-10, 12-14, 17 & 18
