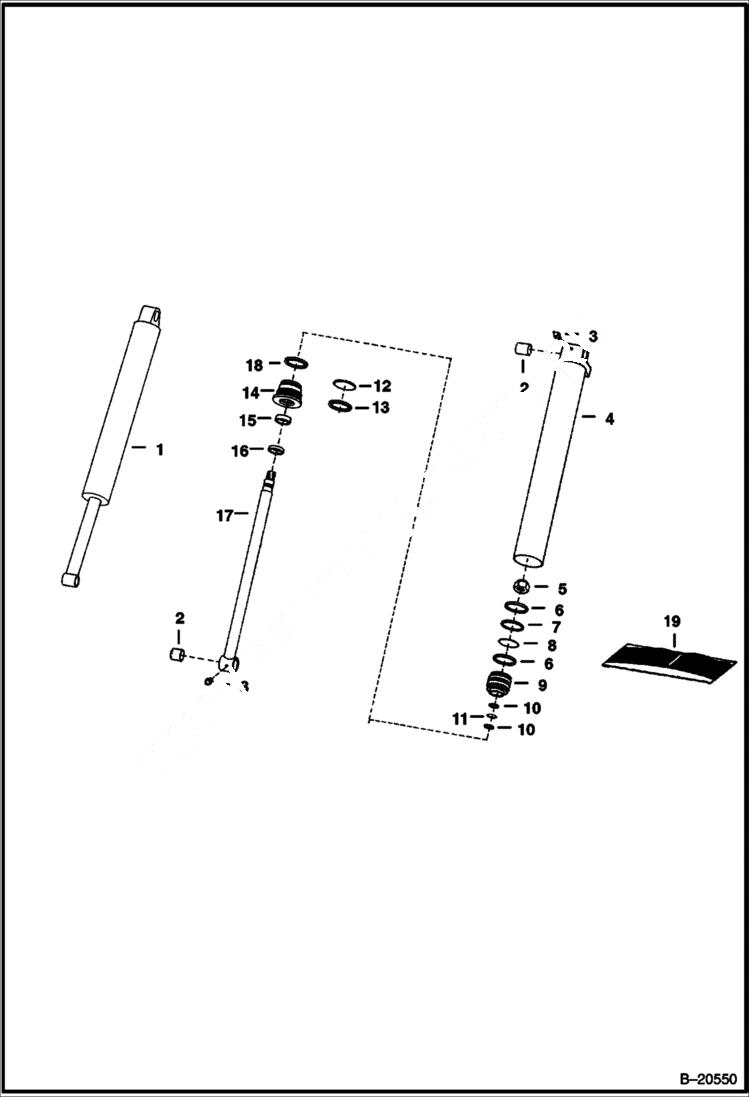

Запчасти Bobcat BACKHOE BACKHOE (Bucket Cylinder) (914) (914A) 914/914A BACKHOE

1

6508539

CYLINDER hydraulic - Ref. 2-17

2

6509299

BUSHING

3

10H25

FITTING, GREASE 5

4

CASE NLA

5

92D24

NUT Was 82D24 - B

6

6518611

RING wear

7

1530265

PISTON SEAL piston seal

8

25K30300

O RING 10

9

6508836

PISTON cylinder

10

6518608

RING piston seal

11

58K125

O RING 10 Was 6518606 - A

12

O RING 10 NLA - Order Ref. 18 - Was 58K338 - B

13

RING NLA - back-up - Order Ref. 18 - Was 73K338

14

6508835

HEAD

15

6538277

SEAL wiper

16

6686998

WIPER, ROD CYL Was 1657090B - A

17

6508831

ROD

18

7008353

SEAL, QUAD

19

7196892

KIT, SEAL Ref. 5-8, 10, 11, 15, 16 & 18 - Was 7137573 - A
