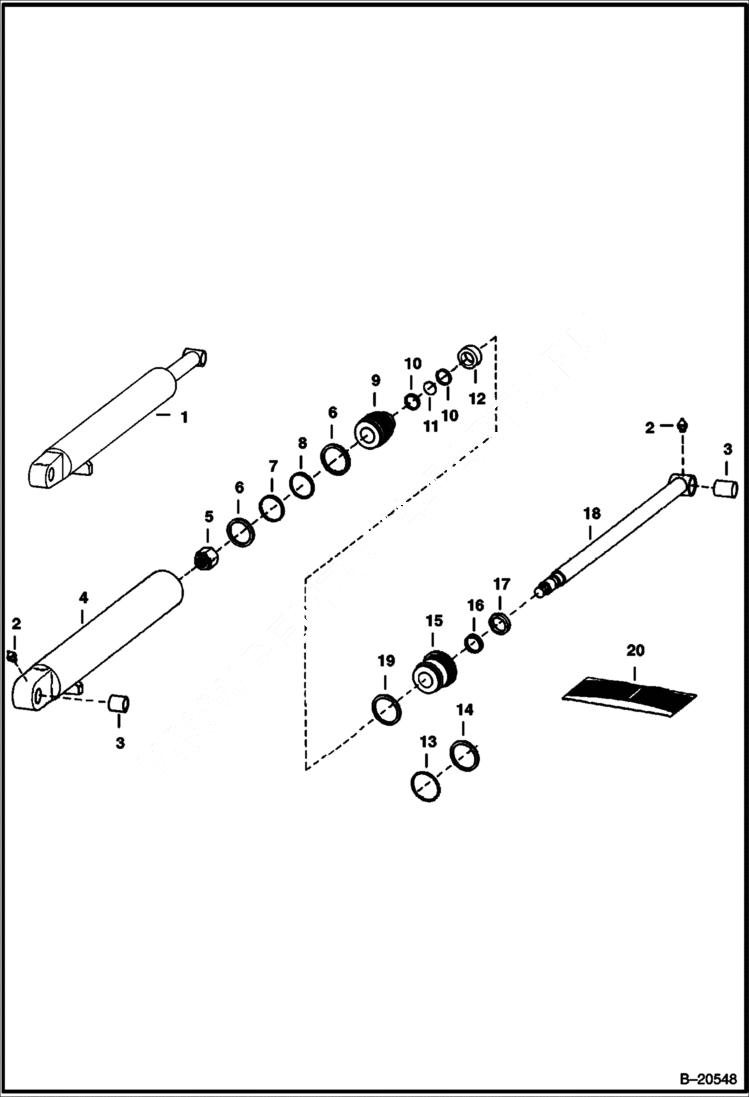

Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) 914/914A BACKHOE

1

6508537

CYLINDER boom - Ref. 2-18

2

10H25

FITTING, GREASE 5

3

6509300

BUSHING

4

CASE NLA

5

92D24

NUT Was 86D000024B - B

6

RING NLA - wear - Was 6518617 - A

7

25K30316

O RING 10 piston seal - Was NSS - D

8

947023

RING back-up - Was NSS - D

9

6508796

PISTON

10

80K129

WSH BK UP piston seal - Was 73K-129 - A

11

25K30118

O RING 10 Was NSS - D

12

6508810

SPACER

13

O RING 10 NLA - Order Ref. 20 - Was 25K60320 - B

14

RING NLA - back-up - Order Ref. 20 - Was 73K342 - B

15

6508794

HEAD

16

6538277

SEAL wiper - Was NSS - D

17

6686998

WIPER, ROD CYL Was 6666545 - A

18

6508790

ROD

19

7008351

SEAL, QUAD

20

7196390

KIT, SEAL Ref. 5, 7, 8, 10, 11, 16, 17 & 19 - Was 6589184 - A
