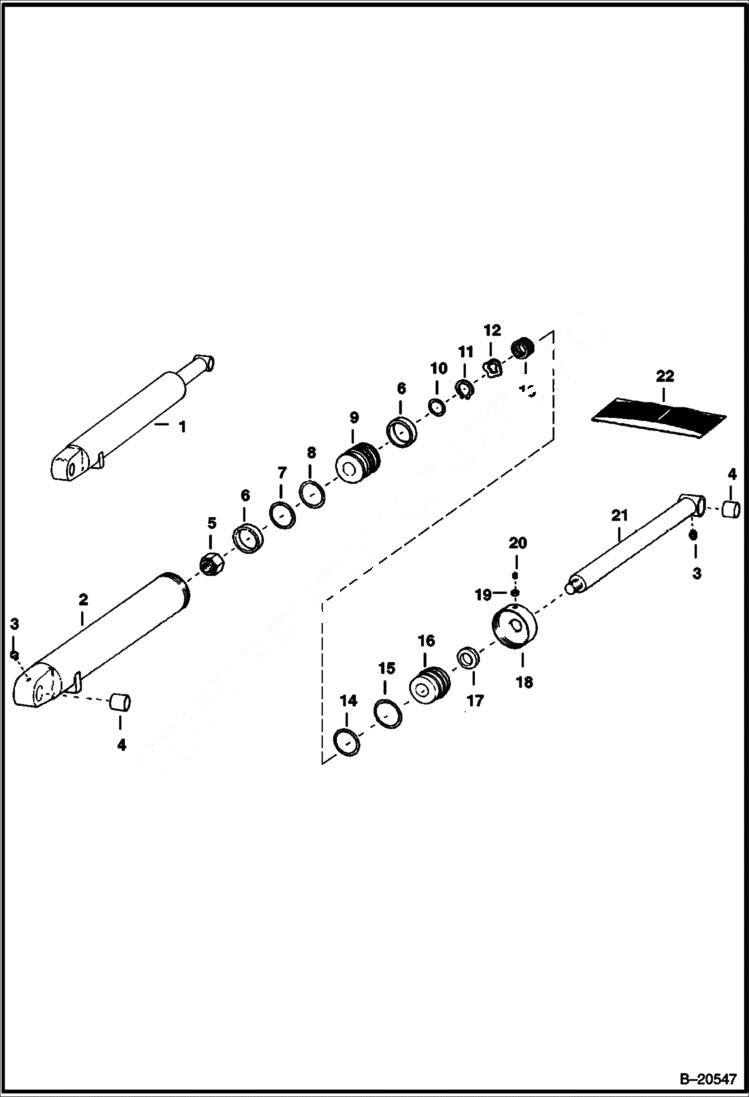

Запчасти Bobcat BACKHOE BACKHOE (Boom Cylinder) (914A - Old Style) 914/914A BACKHOE

1

CYLINDER See Illustration BACKHOE/ B20548 NLA - Order 6508537

2

CASE NLA

3

10H25

FITTING, GREASE 5

4

947542

BUSHING

5

948655

NUT

6

RING NSS - bearing

7

RING NSS - seal

8

O-RING NSS

9

948654

PISTON

10

O-RING NLA - Was 58K000226B - A

11

1314981

RING retaining

12

947657

WASHER wave

13

SEAL NSS - vee

14

O-RING NSS

15

WASHER NSS - back-up

16

947613

HEAD

17

SEAL NSS - wiper

18

947701

RING

19

7D4

NUT

20

15G408

SCREW

21

6515848

ROD

22

948651

SEAL KIT Ref. 6-8, 10, 13-15 & 17
