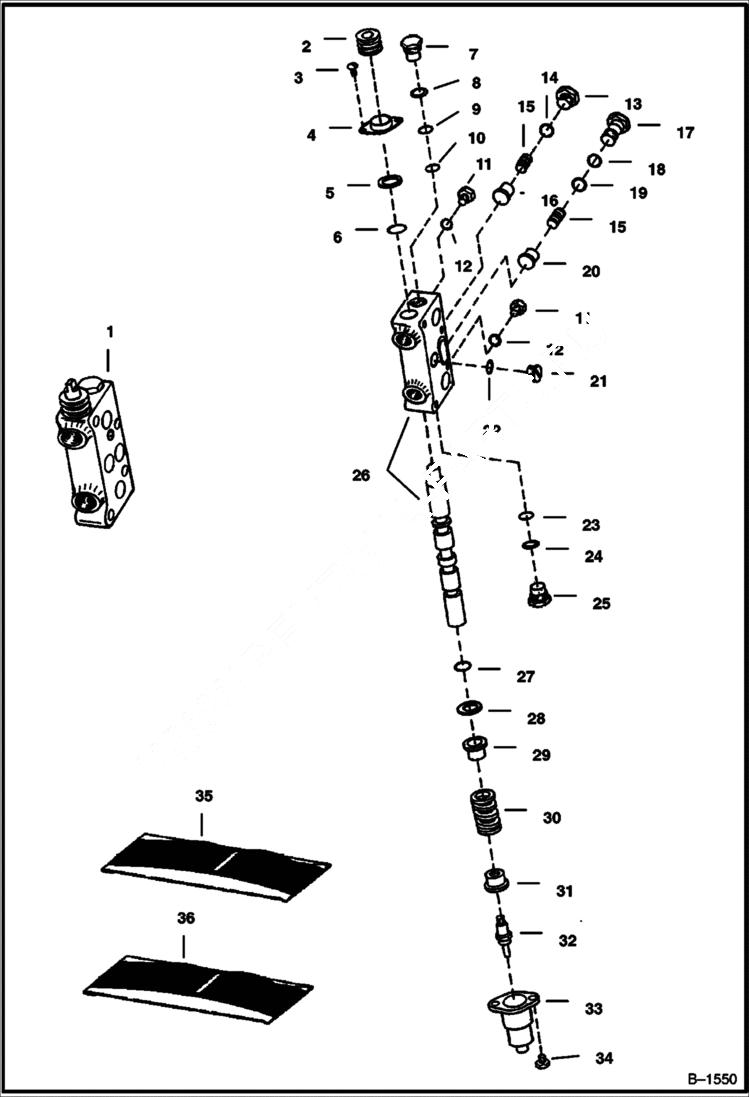

Запчасти Bobcat BACKHOE BACKHOE (Valve Section - Boom) (914A) 914/914A BACKHOE

1

6519603

SECTION boom - Ref. 2-34

2

947744

DUSTSEAL

3

SCREW NLA - Was 92G000406B - A

4

947752

RETAINER dust cover

5

947746

WASHER

6

O-RING NSS

7

6665480

RELIEF VALVE Was 6664959 - A

8

O-RING NSS - See Ref. 36

9

WASHER NSS - back-up - See Ref. 36

10

O-RING NSS - Ref. 36

11

6632473

PLUG Was 947754B - A

12

O-RING NSS

13

6519631

PLUG

14

893264

O-RING

15

947737

SPRING

16

947719

PLUNGER lift check

17

947753

PLUG

18

WASHER NSS - back-up

19

O-RING NSS

20

947717

PLUNGER lift check

21

6519630

PLUG

22

O-RING NSS

23

O-RING NSS

24

WASHER NSS - back-up

25

RELIEF VALVE NSS - Was 947638B - A

26

BODY & SPOOL NSS

27

O-RING NSS

28

947745

RETAINER

29

947748

WASHER

30

947738

SPRING

31

947749

WASHER

32

SCREW NLA - Was 947747B - A

33

6519605

CAP

34

6631988

SCREW

35

948310

KIT W/Ref. 6, 8-10, 12, 14, 18, 19, 22-24 & 27

36

6657100

SEAL KIT W/Ref. 8-10 - Use W/Ref. 7 W/ 32041LA marked on end of relief valve

36

6669653

SEAL KIT W/Ref. 8-10 - Use W/Ref. 7 W/32041LA or 32041LA3 marked on end of relief valve
