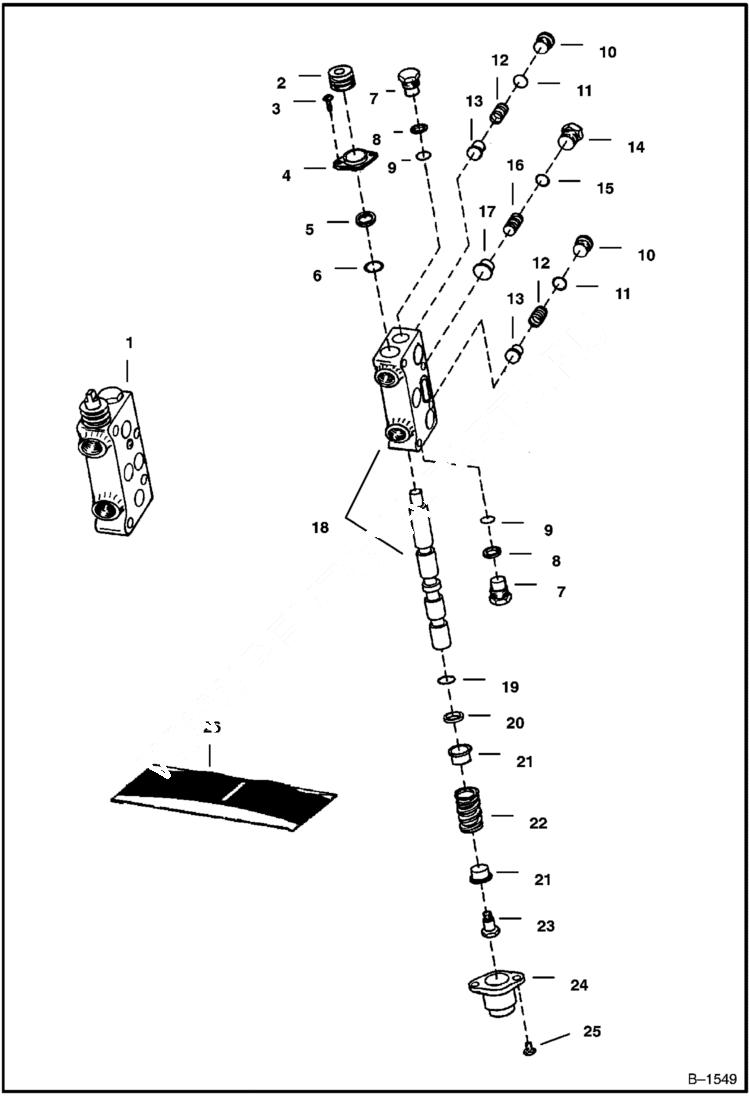

Запчасти Bobcat BACKHOE BACKHOE (Valve Section - Bucket & Dipperstick) (914A) 914/914A BACKHOE

1

6519601

SECTION bucket & dipp. - Ref. 2-25

2

947744

DUSTSEAL dust

3

SCREW NLA - Was 92G000406B - A

4

947752

RETAINER dust cover

5

947746

WASHER

6

O-RING NSS

7

RELIEF VALVE NSS - Was 947638B - A

8

WASHER NSS - back-up

9

O-RING NSS

10

6632473

PLUG Was 947754B - A

11

O-RING NSS

12

1550482

SPRING

13

947718

PLUNGER lift check

14

6519632

PLUG

15

O-RING NSS

16

947737

SPRING

17

947717

PLUNGER lift check

18

BODY & SPOOL NSS

19

O-RING NSS

20

947745

RETAINER

21

947749

WASHER

22

947738

SPRING

23

947750

SCREW

24

947710

CAP ASSY

25

6631988

SCREW

26

948308

KIT W/Ref. 6, 8, 9, 11, 15 & 19
